QR12038HBL 120mm Axial Cooling Fan | Ball Bearing Cabinet Fan
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Siemens
Product Description
Sinamics QR12038HBL Overview

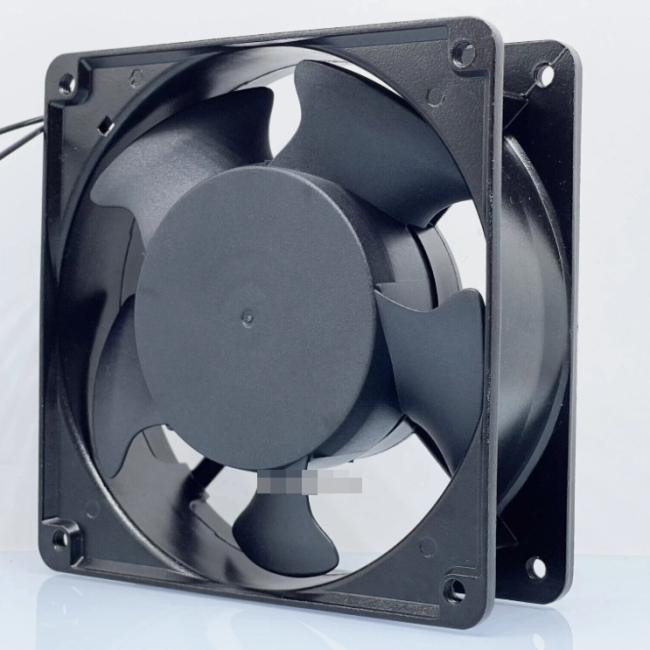

The QR12038HBL is a 120×120×38mm industrial axial cooling fan with dual ball bearing structure, designed for reliable long-term operation in electrical cabinets, welding machines and control panels. It runs on AC 220–240V power supply, delivering stable airflow with low noise and strong durability. This fan features impedance protection and Class B insulation, meeting industrial safety standards for continuous cooling. It is widely used in network cabinets, electrical enclosures and industrial equipment for efficient heat dissipation.

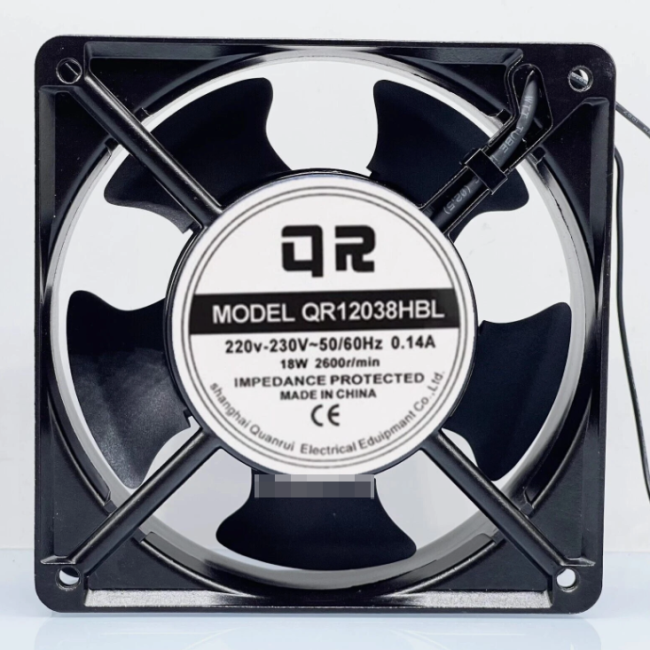

Figure 1 shows the front panel of QR12038HBL.
Quick Specs.
Table 1 shows the Quick Specs
| Item | Value |
|---|---|
| Model | QR12038HBL |
| Type | Axial Flow Fan |
| Size | 120×120×38mm |
| Bearing | Dual Ball Bearing |
| Voltage | AC 220/240V |
| Application | Cabinet, Welding Machine, Industrial |
Detailed Specification
| Parameter | Specification |
|---|---|
| Model Number | QR12038HBL |
| Dimension | 120mm × 120mm × 38mm |
| Type | AC Axial Cooling Fan |
| Bearing | Dual Ball Bearing (HBL) |
| Rated Voltage | AC 220V–240V |
| Frequency | 50/60Hz |
| Speed | 2700–3100 RPM |
| Air Flow | 2.6–3.3 m³/min |
| Noise | 43–46 dB(A) |
| Power | ~22W |
| Protection | Impedance Protected |
| Insulation Class | Class B |
| Working Temp | -10°C to +60°C |
| Certifications | CE |
| Application | Network Cabinet, Electrical Panel, Welding Machine |
