MDS-B-SVJ2-20 Mitsubishi 2.0kW Servo Drive Unit for CNC System
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Siemens
Product Description
Sinamics MDS-B-SVJ2-20 Overview
The MDS-B-SVJ2-20 is a high-performance servo drive unit designed by Mitsubishi Electric for precision motion control in CNC machine tools and industrial automation systems. With a rated power of 2.0 kW and wide voltage compatibility (200–230V AC), it delivers stable, responsive drive performance for demanding machining applications.

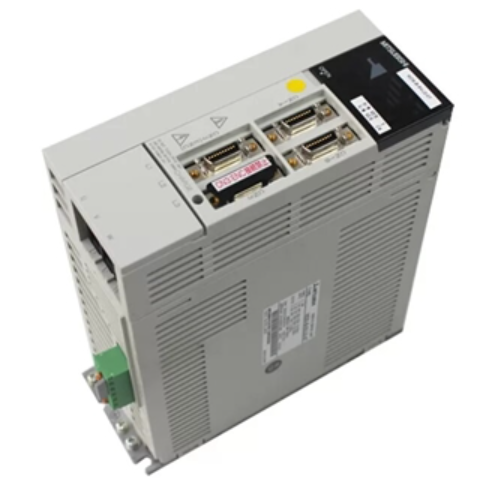

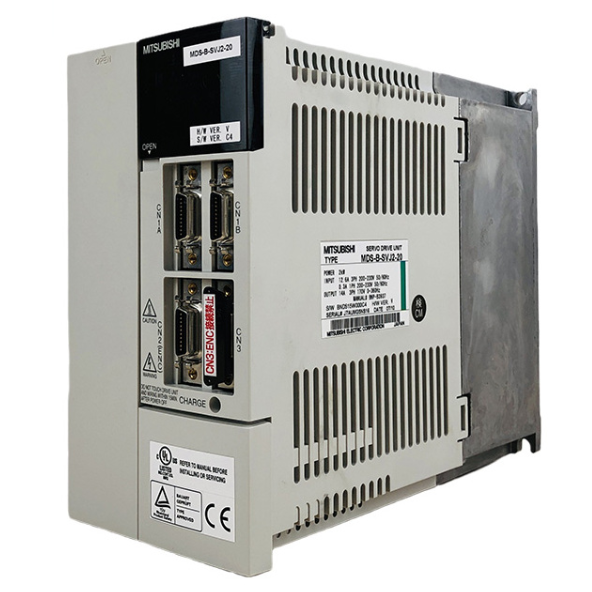

Figure 1 shows the front panel of MDS-B-SVJ2-20.
Quick Specs.
Table 1 shows the Quick Specs
| Item | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model | MDS-B-SVJ2-20 |
| Type | Servo Drive Unit |
| Rated Power | 2.0 kW |
| Input Voltage | 3PH AC200–230V, 50/60Hz |
| Output | 3PH 14A, 170V, 0–360Hz |
Detailed Specification
| Parameter | Details |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Series | MELDAS MDS-B-SVJ2 |
| Model | MDS-B-SVJ2-20 |
| Rated Output | 2.0 kW |
| Input Power | 3PH 200–230V AC, 50/60Hz; 1PH 200–230V AC (control) |
| Input Current | 12.6A (power), 0.3A (control) |
| Output Current | 14A |
| Output Voltage | 170V AC |
| Output Frequency | 0–360Hz |
| Control Modes | Position, Speed, Torque, Hybrid |
| Protections | Overcurrent, Overvoltage, Overspeed, Overload |
| Operating Temperature | 0°C to 40°C |
| Weight | Approx. 1.0 kg |
| Dimensions | L170×W90×H200 mm |
| Manual No. | BNP-B3937 |
