Omron CP1L‑EM40DT‑D Compact PLC CPU with Ethernet, 24 Inputs 16 Transistor Outputs
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Siemens
Product Description
Sinamics CP1L-EM40DT-D Overview
The CP1L‑EM40DT‑D is a high‑performance compact PLC from Omron, designed for reliable machine control and automation systems. It integrates 24 digital inputs, 16 NPN transistor outputs, and a built‑in Ethernet port for stable networking, monitoring, and remote access. With fast processing, ample memory, and built‑in positioning functions, it delivers modular‑PLC performance in a micro‑PLC form factor. Ideal for small‑to‑medium automation machines, it supports easy programming, flexible expansion, and seamless integration into industrial networks.

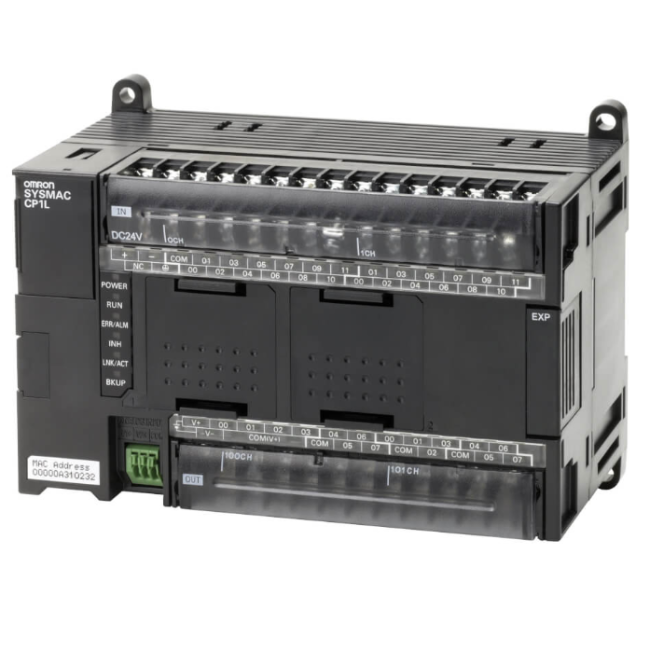

Figure 1 shows the front panel of CP1L-EM40DT-D.
Quick Specs.
Table 1 shows the Quick Specs
| Item | Specification |
|---|---|
| Model | CP1L‑EM40DT‑D |
| Power Supply | 24 VDC |
| Digital Inputs | 24 points (PNP/NPN) |
| Digital Outputs | 16 points (NPN transistor) |
| Communication | Built‑in Ethernet TCP/IP |
| Program Memory | 20 K steps |
| Data Memory | 32 K words |
Detailed Specification
| Parameter | Details |
|---|---|
| Model | CP1L‑EM40DT‑D |
| Supply Voltage | 24 VDC |
| Digital Inputs | 24 points, 24 VDC, PNP/NPN compatible |
| Digital Outputs | 16 points, NPN transistor, 0.3 A per point |
| Logic Execution Time | 0.55 μs |
| Program Capacity | 20 K steps |
| Data Memory | 32 K words |
| Communication | 1× Ethernet TCP/IP port |
| High‑speed Counter | 4 axes, 100 kHz |
| Pulse Output | 2 axes, 100 kHz |
| Real‑time Clock | Standard |
| Expansion Capability | Up to 3 expansion units, max 160 I/O |
| Operating Temperature | 0 ~ +55 °C |
| Dimensions (W×H×D) | 150 × 90 × 85 mm |
| Weight | Approx. 515 g |
