Omron 3G3MX2-A4022-ZV1 2.2kW 400V Compact Inverter Drive for Industrial Automation
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Siemens
Product Description
Sinamics 3G3MX2-A4022-ZV1 Overview
The 3G3MX2-A4022-ZV1 is a high-performance compact inverter from Omron’s MX2‑V1 series, designed for reliable and precise motor control in industrial environments. It delivers 2.2kW heavy‑duty / 3.0kW normal‑duty output at 400V three‑phase, with sensorless vector control for strong low‑speed torque and fast response.

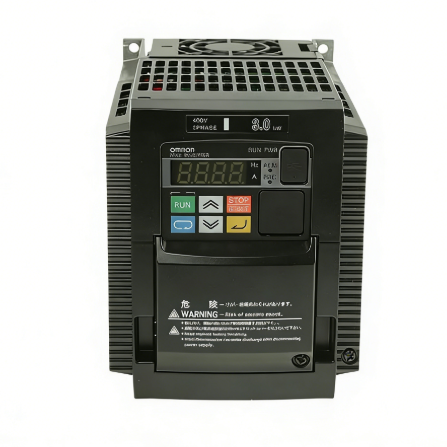

Figure 1 shows the front panel of 3G3MX2-A4022-ZV1.
Quick Specs.
Table 1 shows the Quick Specs
| Item | Details |
|---|---|
| Model | 3G3MX2-A4022-ZV1 |
| Brand | Omron |
| Series | MX2-V1 |
| Power | 2.2kW (HD), 3.0kW (ND) |
| Voltage | 3-phase 400V AC |
| Current | 5.5A (HD), 6.9A (ND) |
| Control | Sensorless Vector / V/F |
| Freq Range | 0.1–580Hz |
Detailed Specification
| Parameter | Value |
|---|---|
| Model Number | 3G3MX2-A4022-ZV1 |
| Series | MX2 Multi‑function Compact Inverter |
| Input Power | 3‑phase 380–480V AC, 50/60Hz |
| Rated Output (HD/ND) | 2.2kW / 3.0kW |
| Rated Current (HD/ND) | 5.5A / 6.9A |
| Output Frequency | 0.1–580Hz |
| Control Method | Sensorless Vector Control, V/F Control |
| Starting Torque | 200% at 0.5Hz |
| Overload Capacity | 150% 1min (HD); 120% 1min (ND) |
| Communication | Built‑in RS485, Modbus RTU |
| Protection | Overcurrent, Overvoltage, Undervoltage, Overheat |
| Cooling | Forced air cooling |
| Enclosure | IP20 |
| Application | Pumps, Fans, Conveyors, Machine Tools |
