Mitsubishi FX1N-40MR-DS Compact PLC 40 I/O Relay Output DC Power Supply
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Siemens
Product Description
Sinamics FX1N-40MR-DS Overview
The FX1N-40MR-DS is a compact, high‑performance programmable logic controller from Mitsubishi’s MELSEC‑FX1N series. It integrates CPU, power supply, 24 DC inputs, and 16 relay outputs in a space‑saving design, ideal for small‑to‑medium automation systems. With 12–24VDC power input, battery‑free data retention, and expandable I/O up to 128 points, it delivers stable control for machinery, assembly lines, and environmental systems. Reliable, easy to program, and maintenance‑free, the FX1N-40MR-DS is a cost‑effective solution for industrial automation.

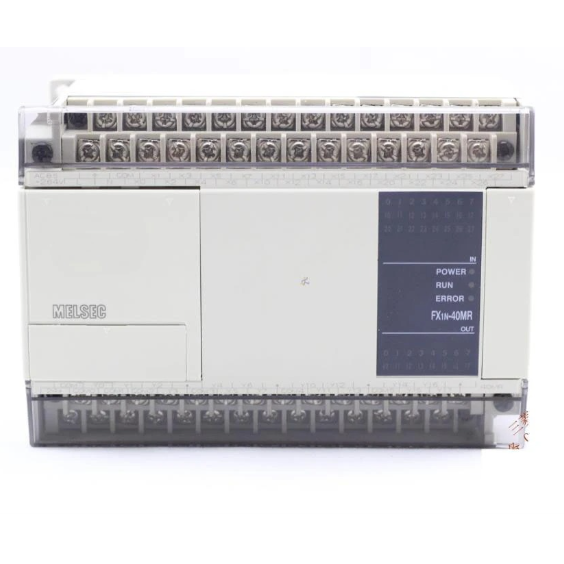

Figure 1 shows the front panel of FX1N-40MR-DS.
Quick Specs.
Table 1 shows the Quick Specs
| Item | Details |
|---|---|
| Model | FX1N-40MR-DS |
| Brand | Mitsubishi |
| Total I/O | 40 points |
| Input | 24 points DC 24V |
| Output | 16 points relay |
| Power Supply | 12–24VDC |
| Dimensions | 130×90×75 mm |
| Weight | 0.65 kg |
Detailed Specification
| Parameter | Specification |
|---|---|
| Model | FX1N-40MR-DS |
| Series | MELSEC‑FX1N |
| Supply Voltage | 12–24 VDC |
| Power Consumption | 18 W |
| Input Type | 24×DC 24V sink input |
| Output Type | 16×relay output, 2A per point |
| Program Memory | 8000 steps EEPROM (battery‑free) |
| Processing Speed | 0.55 μs per basic instruction |
| Operating Temperature | 0–55 °C |
| Storage Temperature | -20–70 °C |
| Humidity | 5–95% RH (no condensation) |
| Dimensions (W×H×D) | 130 × 90 × 75 mm |
| Weight | 0.65 kg |
| Mounting | DIN rail or panel mounting |
| Protection | IP10 (enclosure) |
| Expansion | Max 128 I/O with extension modules |
| Features | Built‑in clock, PID, high‑speed counter |
