COP-SI400G-SR4 400G OSFP Optical Transceiver MMF OSFP 400G 2*SR4 MPO 100m

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

Introduction

The 800G and 400G optical transceivers are high-speed fiber-optic modules used to transmit large volumes of data over fiber optics. Their usage is mainly driven by the need for massive bandwidth, low latency, and scalability in modern networks, like data centers, AI Computing Cluster, Data Center Interconnect, Internal Fabric.

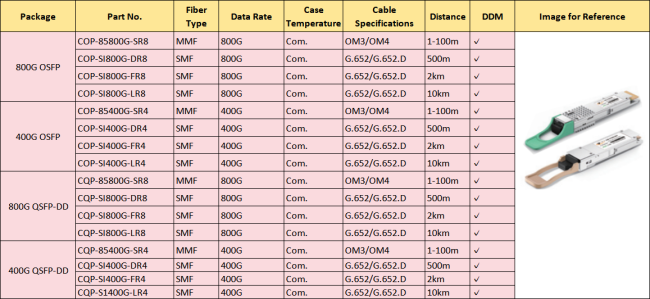

List of some 800G & 400G optical transceivers.

Package	Part No.	Fiber Type	Data Rate	Case Temperature	Cable Specifications	Distance	DDM
800G OSFP	COP-85800G-SR8	MMF	800G	Com.	OM3/OM4	1-100m	yes
	COP-SI800G-DR8	SMF	800G	Com.	G.652/G.652.D	500m	yes
	COP-SI800G-FR8	SMF	800G	Com.	G.652/G.652.D	2km	yes
	COP-SI800G-LR8	SMF	800G	Com.	G.652/G.652.D	10km	yes
400G OSFP	COP-85400G-SR4	MMF	400G	Com.	OM3/OM4	1-100m	yes
	COP-SI400G-DR4	SMF	400G	Com.	G.652/G.652.D	500m	yes
	COP-SI400G-FR4	SMF	400G	Com.	G.652/G.652.D	2km	yes
	COP-SI400G-LR4	SMF	400G	Com.	G.652/G.652.D	10km	yes
800G QSFP-DD	CQP-85800G-SR8	MMF	800G	Com.	OM3/OM4	1-100m	yes
	CQP-SI800G-DR8	SMF	800G	Com.	G.652/G.652.D	500m	yes
	CQP-SI800G-FR8	SMF	800G	Com.	G.652/G.652.D	2km	yes
	CQP-SI800G-LR8	SMF	800G	Com.	G.652/G.652.D	10km	yes
400G QSFP-DD	CQP-85400G-SR4	MMF	400G	Com.	OM3/OM4	1-100m	yes
	CQP-SI400G-DR4	SMF	400G	Com.	G.652/G.652.D	500m	yes
	CQP-SI400G-FR4	SMF	400G	Com.	G.652/G.652.D	2km	yes
	CQP-S1400G-LR4	SMF	400G	Com.	G.652/G.652.D	10km	yes

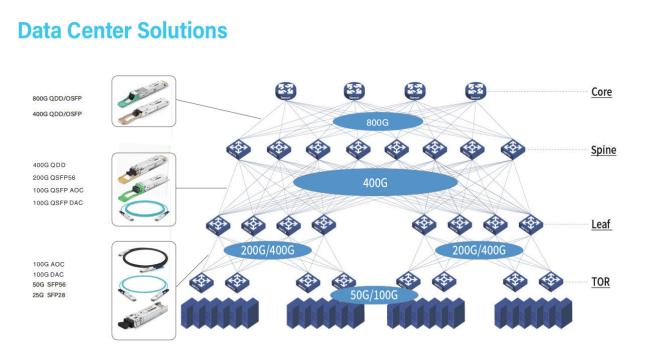

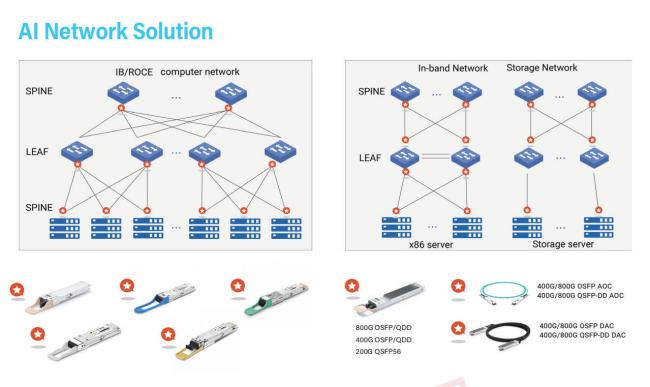

Usage scenario: AI Network Solution and Data Center Solution

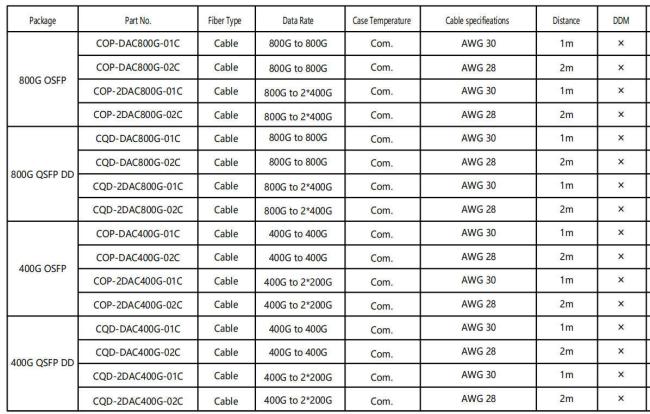

Cables needed (AOC & DAC)

Package	Part No.	Fiber Type	Data Rate	Case Temperature	Cable specifications	Distance
800G OSFP	COP-DAC800G-01C	Cable	800G to 800G	Com.	AWG 30	1m
	COP-DAC800G-02C	Cable	800G to 800G	Com.	AWG 28	2m
	COP-2DAC800G-01C	Cable	800G to 2*400G	Com.	AWG 30	1m
	COP-2DAC800G-02C	Cable	800G to 2*400G	Com.	AWG 28	2m
800G QSFP DD	CQD-DAC800G-01C	Cable	800G to 800G	Com.	AWG 30	1m
	CQD-DAC800G-02C	Cable	800G to 800G	Com.	AWG 28	2m
	CQD-2DAC800G-01C	Cable	800G to 2*400G	Com.	AWG 30	1m
	CQD-2DAC800G-02C	Cable	800G to 2*400G	Com.	AWG 28	2m
400G OSFP	COP-DAC400G-01C	Cable	400G to 400G	Com.	AWG 30	1m
	COP-DAC400G-02C	Cable	400G to 400G	Com.	AWG 28	2m
	COP-2DAC400G-01C	Cable	400G to 2*200G	Com.	AWG 30	1m
	COP-2DAC400G-02C	Cable	400G to 2*200G	Com.	AWG 28	2m
400G QSFP DD	CQD-DAC400G-01C	Cable	400G to 400G	Com.	AWG 30	1m
	CQD-DAC400G-02C	Cable	400G to 400G	Com.	AWG 28	2m
	CQD-2DAC400G-01C	Cable	400G to 2*200G	Com.	AWG 30	1m
	CQD-2DAC400G-02C	Cable	400G to 2*200G	Com.	AWG 28	2m

MPO/MTPT Jumpers and Conventional Fiber Jumpers

Connector Type	Core	Fiber Type	Material	Insertion Loss	Return loss	Ref Picture
MTP/APC-MTP/APC	2008/12/24	MMF	LSZH	<0.35dB	>20dB
MTP/UPC-MTP/UPC
MTP/UPC-LC/UPC	2008/12/24	MMF	LSZH	<0.35dB	>60dB
MTP/UPC-LC/APC
MTP/UPC-MTP/UPC	2008/12/24	SMF	LSZH	<0.35dB	>60dB
MTP/APC-MTP/APC
MTP/UPC-LC/UPC	2008/12/24	MMF/SMF	LSZH	<0.35dB	>60dB
MTP/UPC-LC/APC

LC/APC LC/APC	Single/Dual core	MMF/SMF	LSZH	<0.35dB	>60dB
SC/UPC SC/UPC	Single/Dual core	MMF/SMF	LSZH	<0.35dB	>60dB
SC/APC SC/UPC	Single/Dual core	MMF/SMF	LSZH	<0.35dB	>60dB
SC/APC SC/APC	Single/Dual core	MMF/SMF	LSZH	<0.35dB	>60dB
