Huawei CloudEngine CE6857F-48S6CQ-B Data Center Switch 48x10GE SFP+ 6x100GE QSFP28 High Performance Switch

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 2-3 days

Brand: Huawei

Product Description

CE6857F-48S6CQ-B Overview

The Huawei CloudEngine CE6857F-48S6CQ-B is a next‑generation, high‑performance, high‑density, low‑latency data center switch designed for cloud‑era data center networks. It provides 48×10GE SFP+ ports for server access and 6×100GE QSFP28 ports for high‑speed uplinks or core interconnection, delivering a switching capacity of up to 76.8Tbps and a packet forwarding rate of 2000Mpps with line‑rate, non‑blocking performance.

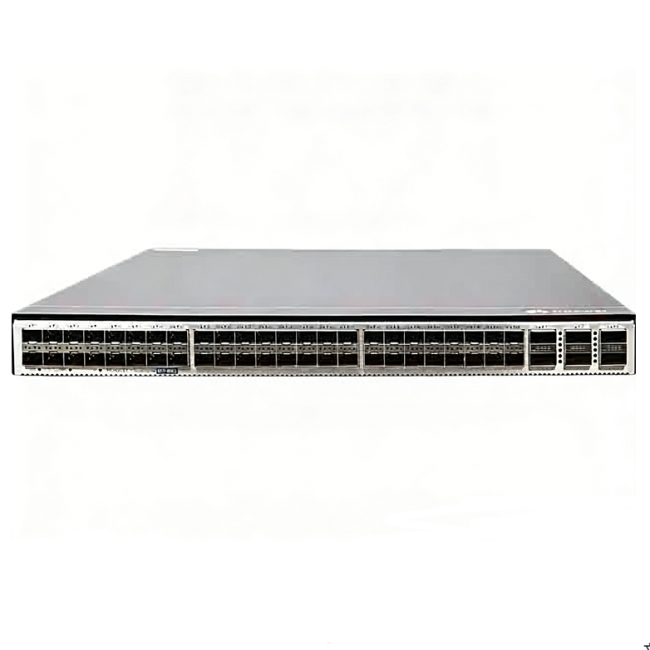

Figure 1 shows the front panel of CE6857F-48S6CQ-B.

Quick Specs

Table 1 shows the Quick Specs.

Item	Specification
Model	CE6857F-48S6CQ-B
Ports	48×10GE SFP+, 6×100GE QSFP28
Switching Capacity	4.8Tbps/76.8Tbps
Forwarding Rate	2000Mpps
Buffer	32MB
Power	Dual AC, 1+1 Redundant
Fans	4× Fan Modules, Port-side Intake
Dimensions (W×D×H)	442×420×43.6 mm
Weight	11kg (Full Config)

CE6857F-48S6CQ-B pecification

Parameter	Details
Product Model	CloudEngine CE6857F-48S6CQ-B
Product Type	Data Center Switch
Fixed Ports	48×10GE SFP+ (downlink), 6×100GE QSFP28 (uplink)
Switching Capacity	4.8Tbps (full-duplex), 76.8Tbps (stacking)
Packet Forwarding Rate	2000Mpps (line-rate)
Buffer Memory	32MB
MAC Address Table	Supports 128K MAC entries, auto-learning & aging
VLAN	Access/Trunk/Hybrid, QinQ, MUX VLAN, GVRP
Multicast	IGMP Snooping, IGMP Proxy, PIM-SM, MBGP, Multicast VxLAN
QoS	ACL, CAR, PQ/DWRR scheduling, WRED, Traffic Shaping
Security	802.1X, DHCP Snooping, ACL, User Privilege Management
Reliability	STP/RSTP/MSTP, VRRP, Eth-Trunk, M-LAG, Hot Swap
Management	Console, Telnet, SSH, SNMPv1/v2/v3, ZTP, iMaster NCE-Campus
Power Supply	2× Pluggable AC Power Modules (1+1 Redundancy)
Cooling	4× Fan Modules, Port-side Air Intake, Hot-swappable
Dimensions	442 mm (W) × 420 mm (D) × 43.6 mm (H) (1U)
Operating Temperature	0°C to 45°C
Relative Humidity	5% to 95% (non-condensing)
