S6730-H48Y6C-V2, Huawei CloudEngine S6730-H Series Switch, 48x25GE SFP28/6x40GE QSFP28/Upgradable to 6x100GE
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Huawei
Product Description
Huawei S6730-H48Y6C-V2 Overview
Experience the Huawei S6730-H48Y6C-V2, a high-performance switch featuring 48x25GE SFP28 and 6x40GE QSFP28 ports, with optional upgrades to 6x100GE QSFP28. Ideal for data centers and enterprise networks, it offers flexibility and scalability for growing network demands.

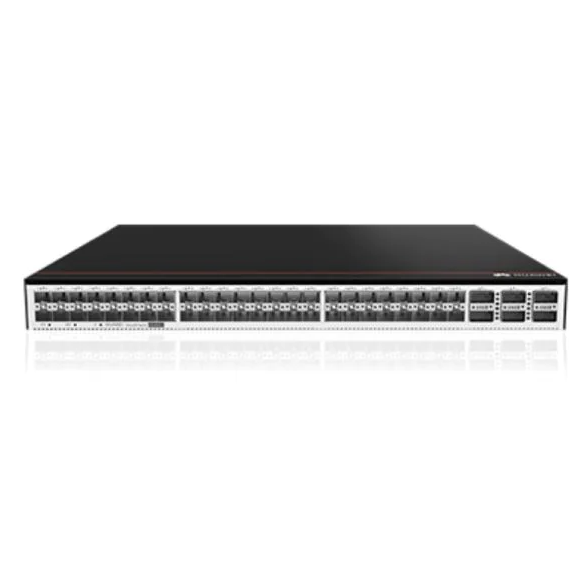

Figure 1 shows the front panel of S6730-H48Y6C-V2.
Product Features Comparison
| Features | S6730-H48Y6C-V2 | Arista 7050SX3-48YC12 | Cisco Nexus 9372PX | Juniper EX4650 | D-E-L-L S5248F-ON | Ciena 5160 | Brocade ICX 7850-48FS |
|---|---|---|---|---|---|---|---|
| Ports | 48x25GE SFP28, 6x40GE QSFP28 | 48x25GE SFP28, 12x100GE QSFP28 | 48x10GE SFP+, 6x40GE QSFP+ | 48x25GE SFP28, 6x100GE QSFP28 | 48x25GE SFP28, 6x40GE QSFP+ | 24x10GE SFP+, 4x40GE QSFP+ | 48x10GE SFP+, 6x100GE QSFP28 |
| Upgrade Option | 6x100GE QSFP28 | 12x100GE QSFP28 | 6x40GE QSFP+ | 6x100GE QSFP28 | 6x40GE QSFP+ | 4x40GE QSFP+ | 6x100GE QSFP28 |
| Power Module | Not included | Included | Included | Included | Included | Included | Included |
| Data Center Ready | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Energy Efficient | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Optional Add-ons
| Model | Description |
|---|---|
| HW-AC-650W | 650W AC Power Module |
| HW-DC-650W | 650W DC Power Module |
| HW-100G-QSFP28 | 100GE QSFP28 Module |
Huawei S6730-H48Y6C-V2 Specification
S6730-H48Y6C-V2 Specifications |
|
| Brand | Huawei |
| Model | S6730-H48Y6C-V2 |
| Ports | 48 x 25GE SFP28 |
| High-Speed Ports | 6 x 40GE QSFP28 |
| Optional Upgrade Ports | 6 x 100GE QSFP28 |
| Power Module | Not included |
| Forwarding Performance | 1,200 Mpps |
| Switching Capacity | 4.8 Tbps |
| Dimensions (H x W x D) | 44.2 mm x 442.0 mm x 420.0 mm |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Power Supply | AC, DC, or Mixed |
| RAM | 8 GB |
| Flash Memory | 2 GB |
| Energy Efficient Ethernet (EEE) | Supported |
| Max Power Consumption | 234 W |
| Average Power Consumption | 175 W |
| MTBF | 200,000 hours |
| MAC Address Table Size | 64,000 |
| VLAN IDs | 4,096 |
| Service Features | Layer 2 and Layer 3 switching |
| Security Features | 802.1X, MACsec, Radius, TACACS+ |
