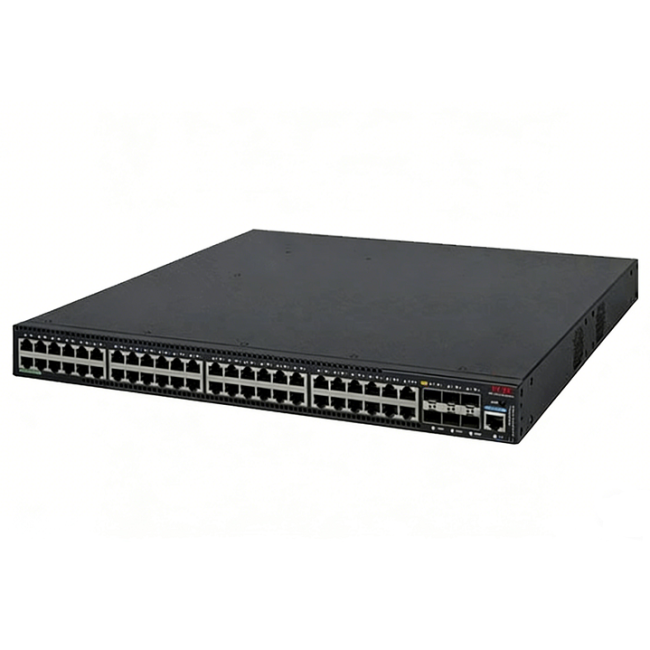

H3C LS-5170-54S-PWR-EI 48-Port Gigabit PoE+ Managed Switch with 6×10G SFP+ Uplinks, Layer 3, 1U Rackmount
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
H3C
Product Description
LS-5170-54S-PWR-EI Overview
The H3C LS-5170-54S-PWR-EI is a high-performance, Layer 3 managed Gigabit switch tailored for enterprise and campus network access deployments. It integrates 48×Gigabit PoE+ ports that comply with IEEE 802.3af/at standards, enabling direct power supply to IP cameras, wireless access points, IP phones, and other PoE-enabled devices, thus eliminating the need for separate power adapters and simplifying cabling.

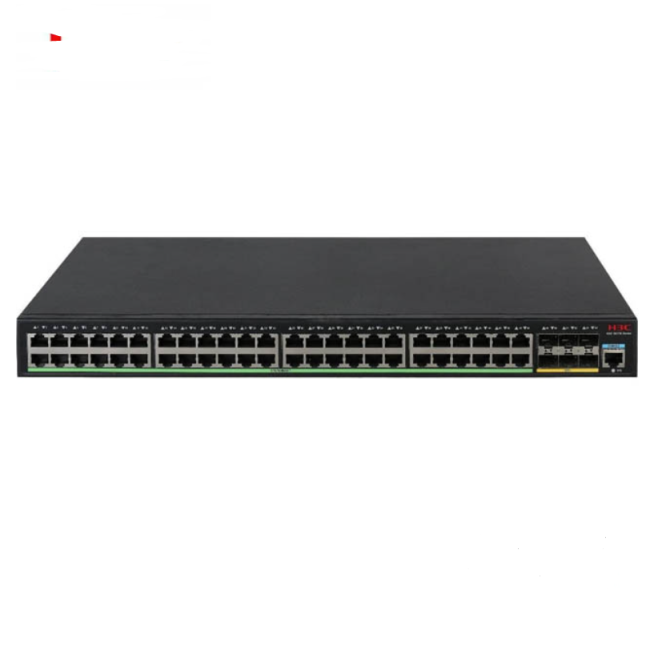

Figure 1 shows the front panel of LS-5170-54S-PWR-EI.
Quick Specs
| Item | Specification |
|---|---|
| Model | LS-5170-54S-PWR-EI |
| Fixed Ports | 48×10/100/1000BASE-T PoE+, 6×1/10G SFP+ |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Switching Capacity | 598 Gbps |
| Forwarding Rate | 161 Mpps |
| Power Supply | AC 100–240V |
| Dimensions | 440 × 360 × 43.6 mm (1U) |
| Form Factor | Rack-mountable |
| Application | Enterprise access, IP camera/AP/phone PoE deployment |
Full Technical Specifications
| Parameter | Details |
|---|---|
| Basic Info | |
| Product Model | LS-5170-54S-PWR-EI |
| Product Series | H3C S5170-EI Series |
| Switch Type | Layer 3 managed Gigabit Ethernet switch |
| Port Configuration | |
| Downlink Ports | 48×10/100/1000BASE-T (PoE+ support) |
| Uplink Ports | 6×1/10G BASE-X SFP+ optical ports |
| Console Port | 1×RJ45 console port |
| Management Port | 1×10/100/1000BASE-T management port |
| PoE Capability | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at (PoE+) |
| Max PoE Power | Up to 370W |
| Per-Port PoE Power | Up to 30W |
| Performance | |
| Switching Capacity | 598 Gbps |
| Packet Forwarding Rate | 161 Mpps |
| MAC Address Table | Up to 32K entries |
| ARP Table | Up to 32K entries |
| Layer 2 Features | |
| VLAN | 802.1Q VLAN, Voice VLAN, QinQ, VLAN Mapping |
| Spanning Tree | STP, RSTP, MSTP |
| Link Aggregation | LACP, Static Trunk |
| Multicast Snooping | IGMP v1/v2/v3 Snooping |
| Layer 3 Features | |
| Routing | Static Routing, RIP, OSPF, IPv4/IPv6 dual stack |
| Multicast | IGMP, PIM-SM/SSM |
| Security | |
| Authentication | 802.1X, MAC Authentication, Portal Authentication |
| Access Control | ACL, Port Security, Storm Control |
| Management | |
| Management Interfaces | Console, Telnet, SSH, Web UI, SNMP |
| Protocols | SNMP v1/v2c/v3, RMON, NETCONF, H3C iMC |
| Physical & Power | |
| Dimensions (W×D×H) | 440 × 360 × 43.6 mm (1U) |
| Weight | ≤ 5.6 kg |
| Power Input | AC 100–240V, 50/60 Hz |
| Max Power Consumption | ≤ 440W (with full PoE load) |
| Cooling | Fan-assisted, front-to-back airflow |
| Operating Temperature | -5°C to 45°C |
| Certifications | CE, FCC, RoHS, UL 62368-1 |
