Huawei CloudEngine S6330-H24X6C 24-Port 10GE 6-Port 100GE Data Center Switch
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Huawei
Product Description

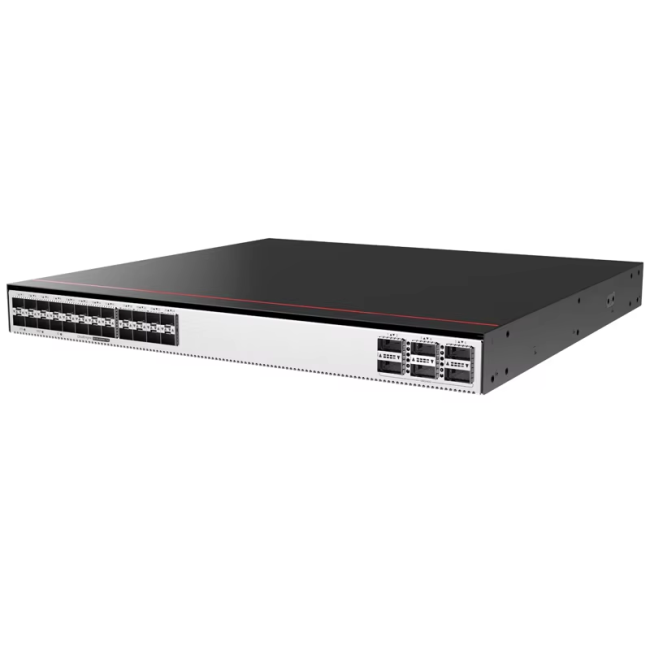

Huawei S6330-H24X6C Overview
Huawei CloudEngine S6330-H24X6C is a high-performance enterprise and data center switch equipped with 24×10GE SFP+ ports and 6×40/100GE QSFP28 uplink ports. It delivers 4.8Tbps switching capacity and supports rich Layer 2/Layer 3 protocols, IPv6, security policies, and iStack stacking. Designed for campus aggregation, data center access, and metro aggregation scenarios, it provides high-density 10GE access, stable forwarding, and simplified O&M for modern network infrastructure.

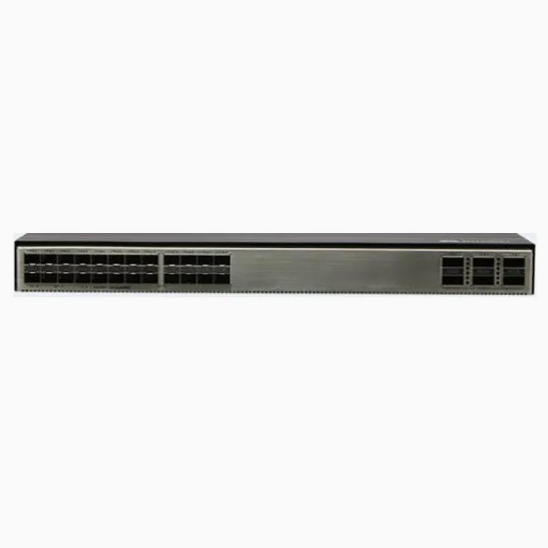

Figure 1 shows the front panel of S6330-H24X6C.
Quick Specs
| Item | Specification |
|---|---|
| Model | S6330-H24X6C |
| Ports | 24×10GE SFP+, 6×40/100GE QSFP28 |
| Switching Capacity | 4.8Tbps |
| Forwarding Rate | 1440Mpps |
| Power | AC 100–240V |
| Features | L3 routing, stacking, IPv6, QoS, security |
Huawei CE8850-EI-B-B0B Specification
| Parameter | Details |
|---|---|
| Product Model | S6330-H24X6C |
| Fixed Ports | 24×10GE SFP+; 6×40/100GE QSFP28 |
| Switching Capacity | 4.8 Tbps |
| Packet Forwarding Rate | 1440 Mpps |
| MAC Address Table | 128K entries |
| Routing | Static, RIP, OSPF, IS-IS, BGP, IPv4/IPv6 dual stack |
| VLAN | 4K VLAN, Voice/Guest VLAN, VLAN Mapping |
| Stacking | Support iStack virtualization |
| Management | SNMP v1/v2c/v3, CLI, WEB, NETCONF, YANG |
| Power Input | 100–240V AC, 50/60Hz |
| Dimension (W×D×H) | 442×420×43.6 mm |
| Environment | Operating temperature: 0–45°C |
