Huawei PAC1K2S12-PF 1200W AC/240V DC Power Module Front-to-Rear Airflow for CloudEngine Switches
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Huawei
Product Description
Huawei PAC1K2S12-PF Overview
The PAC1K2S12-PF is a high-efficiency, 1200W AC/240V DC power module designed for Huawei CloudEngine series switches. It supports a wide input voltage range (90–290V AC and 188–290V DC) and delivers a stable 12V DC output. Featuring front-to-rear airflow and hot-swappable design, it ensures reliable power supply and easy maintenance in data center environments. The module provides comprehensive protection functions and is compatible with various CloudEngine switch models, making it an ideal power solution for enterprise and carrier-grade networking equipment.

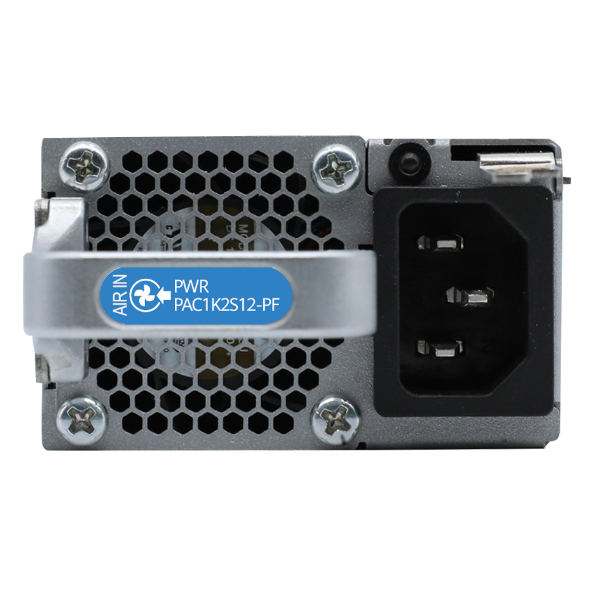

Figure 1 shows the front panel of PAC1K2S12-PF.
Quick Specs
| Item | Specification |
|---|---|
| Model | PAC1K2S12-PF |
| Rated Output Power | 1200W |
| Input Type | AC 90–290V, 240V HVDC |
| Output Voltage | 12V DC |
| Airflow Direction | Front-to-Rear |
| Hot Swapping | Supported |
| Dimensions | 39.6 × 66.0 × 215 mm |
| Weight | ~0.84 kg |
Huawei CE8850-EI-B-B0B Specification
| Parameter | Details |
|---|---|
| Input | |
| AC Input Voltage | 90–290 V AC, 45–65 Hz |
| HVDC Input Voltage | 188–290 V DC (240V nominal) |
| Rated Input Current | 10A (100–130V AC), 8A (200–240V AC/240V DC) |
| Output | |
| Rated Output Voltage | 12 V DC |
| Rated Output Current | 100 A (200–240V AC/240V DC), 67 A (100–130V AC) |
| Rated Output Power | 1200 W (200–240V AC/240V DC), 800 W (100–130V AC) |
| Physical & Environmental | |
| Dimensions (H×W×D) | 39.6 mm × 66.0 mm × 215 mm |
| Weight | 0.844 kg (1.86 lb) |
| Cooling | Fan-cooled |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Features | |
| Hot Swapping | Supported |
| Protection | Over-voltage, under-voltage, over-current, short-circuit, over-temperature protection |
| Compatibility | Huawei CloudEngine 9800, 8800, 6800, 5800 Series Switches |
