C1300-48P-4X, Cisco Catalyst 1300 Switch, 48x PoE+/370W, 4x 10G SFP+, Rack-mountable
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Cisco
Product Description
Cisco C1300-48P-4X Overview
The Cisco C1300-48P-4X is a versatile and powerful switch designed for modern network requirements. It features 48x 10/100/1000 PoE+ ports with a substantial 370W power budget, making it suitable for powering multiple devices like IP phones, wireless access points, and surveillance cameras. Ideal for small to medium-sized enterprises, this switch ensures reliable and efficient network performance.

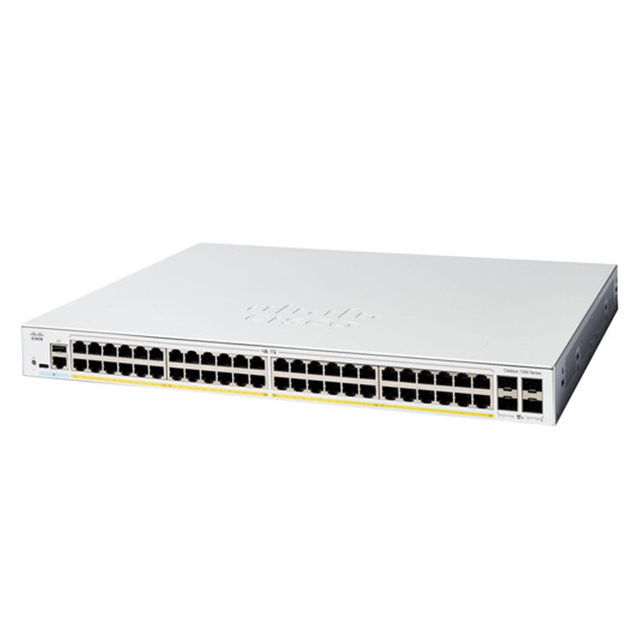

Figure 1 shows the front panel of C1300-48P-4X.
Quick Specs
Table 1 shows the Quick Specs.
| Ports | 48x 10/100/1000 PoE+ |
| Uplink Ports | 4x 10G SFP+ |
| Power Budget | 370W |
| Layer Type | Layer 2 |
| Switching Capacity | 176 Gbps |
Supported Options
| Accessory | Model |
| Cisco 10G SFP+ Module | SFP-10G-SR |
| RPS Power Supply | PWR-RPS2300 |
| Console Cable | CAB-CONSOLE-RJ45 |
Compare to Similar Items
| Model | Differences |
| Cisco C1300-24P-4X | 24x 10/100/1000 PoE+ ports, 195W power budget |
| Cisco C3500-48P-4X | Layer 3 switch, 740W power budget |
| Cisco C9300-48U-E | 48x 10/100/1000 Multigigabit ports, Layer 3 switch |
Cisco C1300-48P-4X pecification
C1300-48P-4X Specifications |
|
| Capacity in millions of packets per second (mpps) (64-byte packets) | 130.94 |
| Switching capacity in gigabits per second (Gbps) |
176.0 |
| Power dedicated to PoE | 375W |
| Number of ports that support PoE | 48 |
| System power consumption |
110V=47.44W 220V=47.03W |
| Power consumption (with PoE) |
110V=462.84W 220V=449.48W |
| Heat dissipation (BTU/hr) | 1579.28 |
| Idle Power |
110V=20.51W 220V=20.27W |
| Total system ports | 48 x Gigabit Ethernet + 4 x 10 G |
| RJ-45 ports | 48 x Gigabit Ethernet |
| Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]) | 4x SFP+ |
| Packet buffer | 1.5 MB |
| Unit dimensions (W x D x H) |
445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in) |
| Unit weight | 6.37 kg (14.04 lb) |
| Fan (number) | 1 |
| Acoustic noise | 25°C: 37.3 dBA |
| MTBF at 25°C (hours) | 1,469,406 |
