CE8850-EI-B-B0B, Huawei CE8850 Switch, 64x100GE QSFP28/2xAC PSU/3xFan
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Huawei
Product Description
Huawei CE8850-EI-B-BOB(WS) Overview
The Huawei CE8850-EI-B-B0B, also known as the CE8850-64CQ-EI switch, is a high-performance network switch designed for data centers and large-scale network environments. Featuring 64-Port 100GE QSFP28, it offers superior connectivity and flexibility. Equipped with 2 AC power modules and 3 fan boxes with port-side intake, this switch ensures efficient power management and cooling, thus enhancing network reliability and performance. Ideal for handling heavy data traffic, the CE8850-EI-B-B0B provides robust solutions for modern networking challenges.

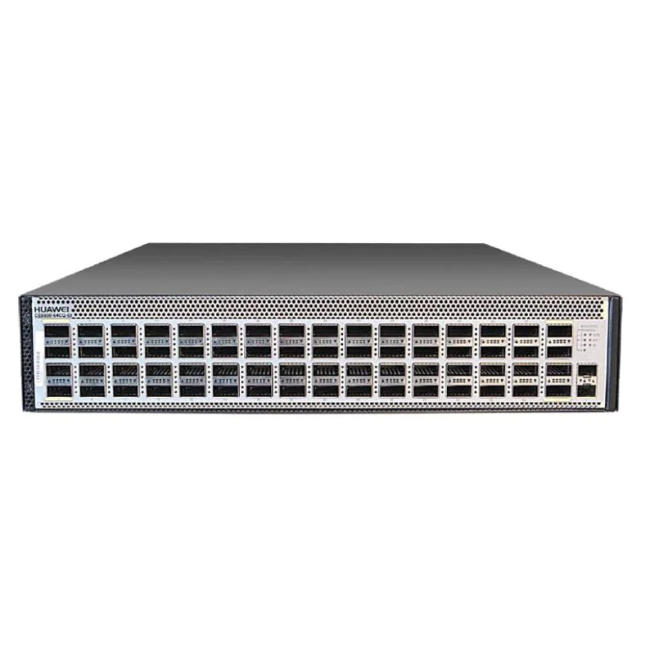

Figure 1 shows the front panel of CE8850-EI-B-BOB(WS).
Quick Specs
| Model | CE8850-64CQ-EI |
| Ports | 64-Port 100GE QSFP28 |
| Power Modules | 2*AC Power Module |
| Fan Boxes | 3*FAN Box |
| Cooling | Port-side Intake |
Supported Options
| Accessory | Model |
| QSFP28 Transceivers | QSFP-100G-SR4 |
| Additional AC Power Module | MPN-QSFP-AC |
| Enhanced Cooling Fan | FAN-QSFP-INT |
Compare to Similar Items
| Model | Differences |
| Huawei CE6810-48S5Q-EI | Lower port density with 48-Port 10GE |
| Huawei CE6865-48S6CQ-EI | Different port combination: 48-Port 10GE + 6-Port 100GE |
| Huawei CE6850-48S4Q-EI | Port-side exhaust cooling design |
Huawei CE8850-EI-B-B0B Specification
CE8850-64CQ-EI Switch Specifications |
|
| Brand | Huawei |
| Model | CE8850-64CQ-EI Switch |
| Ports | 64-Port 100GE QSFP28 |
| Power Modules | 2* AC Power Module |
| Fans | 3* FAN Box |
| Cooling Direction | Port-side Intake |
| Switching Capacity | Up to 12.8 Tbps |
| Forwarding Rate | Up to 9.6 Bpps |
| Dimensions (HxWxD) | 43.6 mm x 442 mm x 600 mm |
| Feature Set | Layer 2 and Layer 3 switching |
| MAC Address Table Size | 320,000 |
| VLAN IDs | 4,096 |
| Power Consumption | Max 1,000 W |
| Operating Temperature | 0C to 40C |
| Storage Temperature | -40C to 70C |
| LEDs | Indicators for switch, port, and fan status |
| Redundancy | Power Module Redundancy, Fan Box Redundancy |
| Management | CLI, Web-based management |
| Certification | CE, RoHS |
| MTBF | Greater than 200,000 hours |
| Noise Level | Less than 65 dB |
