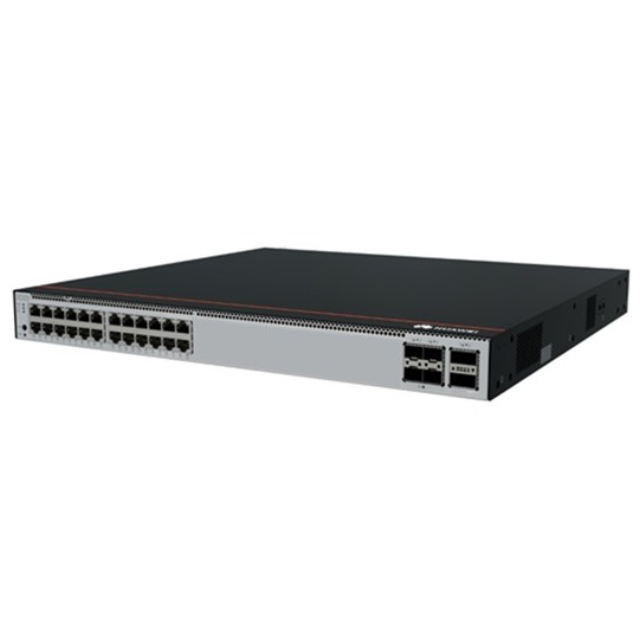

Huawei CloudEngine S5755-H24P4Y2CZ 24-Port PoE+ Gigabit Switch with 25G/100G Uplink

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 2-3 days
Brand: Huawei
Product Description

Huawei S5755-H24P4Y2CZ Overview

The Huawei CloudEngine S5755-H24P4Y2CZ is a high-performance, multi-rate PoE+ switch designed for modern campus and data center networks. It features 24 PoE+ Gigabit Ethernet ports to power IP phones, wireless APs, and surveillance cameras, alongside 4×25GE SFP28 and 2×100GE QSFP28 uplink ports for high-bandwidth aggregation. With a switching capacity of 25.6 Tbps and 786 Mpps forwarding rate, it delivers wire-speed performance for demanding applications




Figure 1 shows the front panel of S5755-H24P4Y2CZ.



Quick Specs
Item Specification
Model S5755-H24P4Y2CZ
Ports 24×10/100/1000M PoE+, 4×25GE SFP28, 2×100GE QSFP28
PoE PoE+ (30W per port)
Switching Capacity 2.56/25.6 Tbps
Forwarding Rate 786 Mpps
Power N+1 redundancy










Huawei S5755-H24P4Y2CZ Specification

Parameter Details
Model Number CloudEngine S5755-H24P4Y2CZ
Product Type Gigabit Ethernet Switch
Switching Capacity 2.56 Tbps (device), 25.6 Tbps (system)
Forwarding Performance 786 Mpps
Fixed Ports 24 × 10/100/1000Base-T PoE+ Ethernet ports

4 × 1/10/25GE SFP28 ports

2 × 40/100GE QSFP28 ports
PoE Standard IEEE 802.3af/at (PoE+), up to 30W per port
Expansion Slot 1 expansion card slot
MAC Address Table Up to 128K entries
VLAN 4K VLANs, Voice VLAN, Guest VLAN
Security Full-port MACsec, 802.1X, ACL, Storm Control
Virtualization VXLAN, EVPN, iPCA
Power Supply N+1 redundancy, AC/DC compatible
Dimensions (W×D×H) 442 mm × 420 mm × 43.6 mm
Operating Temperature 0°C to 45°C
MTBF > 2,000,000 hours
Applications Campus access/aggregation, small data center
