Huawei CloudEngine S5735-S48PN4XE-V2 48-Port PoE+ Gigabit Switch with 10GE Uplink
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Huawei
Product Description
Huawei S5735-S48PN4XE-V2 Overview
The Huawei CloudEngine S5735-S48PN4XE-V2 is a high-performance Layer 3 PoE+ switch designed for enterprise campus and aggregation networks. It provides 48 PoE+ Gigabit ports to power IP phones, wireless APs, and surveillance cameras, plus 4×10GE SFP+ uplinks and 2×12GE stack ports for high-bandwidth connectivity and flexible expansion

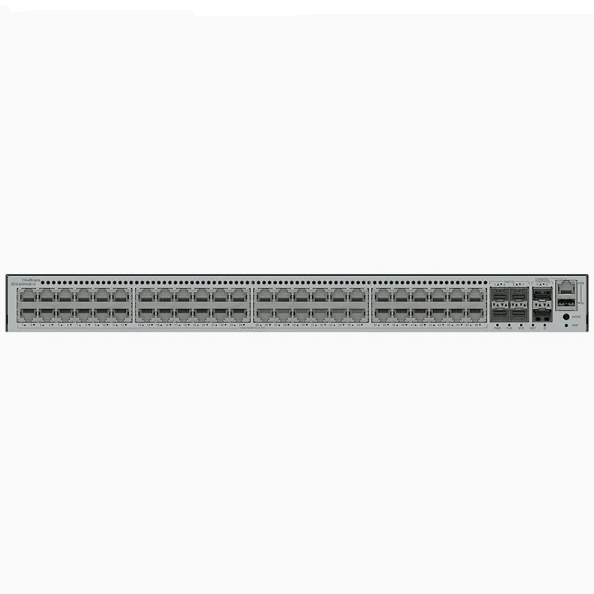

Figure 1 shows the front panel of S5735-S48PN4XE-V2.
Quick Specs
| Item | Specification |
|---|---|
| Model | S5735-S48PN4XE-V2 |
| Ports | 48×10/100/1000BASE-T PoE+, 4×10GE SFP+, 2×12GE Stack |
| PoE | PoE+ (30W per port) |
| Switching Capacity | 672 Gbps/6.72 Tbps |
| Forwarding Rate | 315 Mpps |
| Power | N+1 redundancy |
Huawei S5735-S48PN4XE-V2 Specification
| Parameter | Details |
|---|---|
| Model Number | CloudEngine S5735-S48PN4XE-V2 |
| Product Type | Layer 3 Gigabit Ethernet Switch |
| Switching Capacity | 672 Gbps (device), 6.72 Tbps (system) |
| Forwarding Performance | 315 Mpps |
| Fixed Ports | 48 × 10/100/1000BASE-T PoE+ Ethernet ports
|
| PoE Standard | IEEE 802.3af/at (PoE+), up to 30W per port |
| MAC Address Table | Up to 128K entries |
| VLAN | 4K VLANs, Voice VLAN, MUX VLAN |
| IP Routing | Static, RIP, OSPF, IS-IS, BGP, VRRP |
| Security | 802.1X, ACL, Storm Control, MACsec |
| Power Supply | N+1 redundancy, hot-swappable AC/DC modules |
| Dimensions (W×D×H) | 442 mm × 420 mm × 43.6 mm |
| Operating Temperature | 0°C to 45°C |
| Applications | Campus access, enterprise aggregation, PoE-powered devices |
