Cisco QSFP-100G-AOC3M 100G QSFP28 Active Optical Cable 3M for Data Center
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
QSFP-100G-AOC3M Overview
The Cisco QSFP-100G-AOC3M is a high-performance 100G QSFP28 Active Optical Cable designed for short-range, high-speed data center connectivity. It delivers 100 Gbps throughput over a 3-meter link using four 25.78 Gbps lanes, ideal for intra-rack and inter-rack connections between switches, servers, and storage devices.

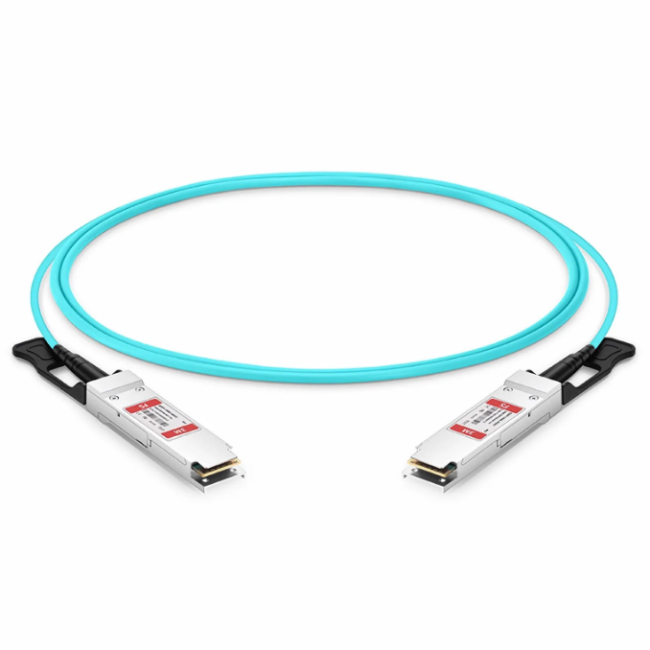

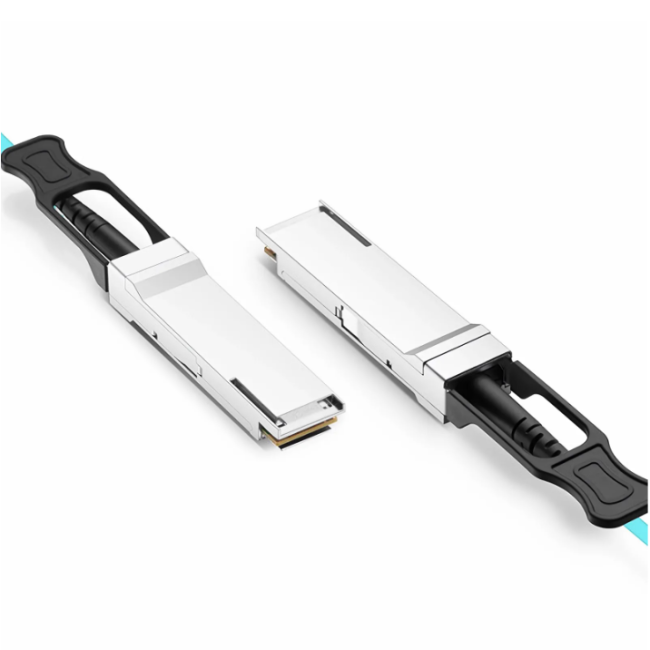

Figure 1 shows the front panel of QSFP-100G-AOC3M .
Quick Specs.
Table 1 shows the Quick Specs
| Item | Specification |
|---|---|
| Model | QSFP-100G-AOC3M |
| Data Rate | 100 Gbps (4×25.78 Gbps) |
| Cable Length | 3 meters |
| Connector | QSFP28 to QSFP28 |
| Cable Type | Active Optical Cable (AOC) |
| Power Consumption | 3.5W |
| Operating Temp | 0°C to 70°C |
Detailed Specification
| Parameter | Details |
|---|---|
| Product Model | QSFP-100G-AOC3M |
| Form Factor | QSFP28 MSA compliant, hot-pluggable |
| Data Rate | 100 Gbps (4 lanes × 25.78125 Gbps) |
| Cable Length | 3 meters |
| Cable Type | Active Optical Cable (AOC) |
| Fiber Type | Multimode fiber (OM3/OM4) |
| Cable Diameter | 3.5 mm |
| Bend Radius | 30 mm |
| Power Supply | 3.3 VDC (3.135–3.465 V) |
| Power Consumption | 3.5 W typical |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 15% to 85% (non-condensing) |
| Compliance | IEEE 802.3bj, QSFP28 MSA, RoHS |
| Applications | Data center interconnection, switch-to-switch, server-to-switch |
