LE2MGSC40DE0, Huawei eSFP Optical Transceiver, GE BIDI SM 40 km, TX1310/RX1490, LC
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
HUAWEI LE2MGSC40DE0 Overview
The Huawei LE2MGSC40DE0 is a state-of-the-art optical transceiver designed for high-speed data transmission over long distances. This eSFP module supports Gigabit Ethernet (GE) and provides single-mode BIDI communication with a transmit wavelength of 1310 nm and a receive wavelength of 1490 nm, enabling a range of up to 40 kilometers. Equipped with an LC connector, it ensures reliable and efficient data transfer, making it ideal for a variety of networking applications.

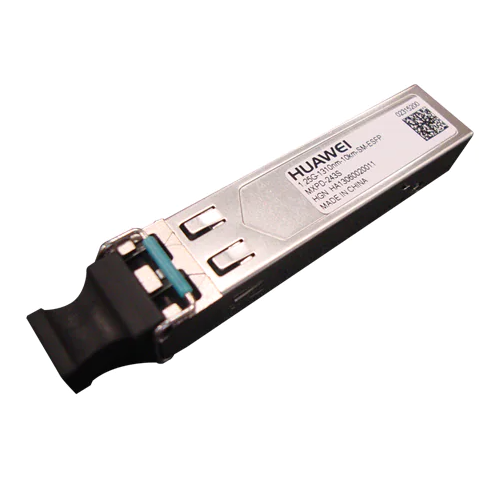

Figure 1 shows the front panel of LE2MGSC40DE0.
![]()
Quick Specs
Table 1 shows the Quick Specs.
| Mark | Huawei |
| Model | LE2MGSC40DE0 |
| Type | Optical transceiver |
| Fashion | Single mode |
| Transmission distance | 40 km |
| Connector type | LC |
Supported options
| Patchcord | Huawei LSPCAB0001 |
| Transceiver carrier | Huawei TRCVR-CR1 |
| Optical amplifier | Huawei OAMPF1 |
Compare with similar items
| Model | Huawei LE2MGSC40DE0 |
| Transmission distance | 40 km |
| Transmission speed | 1 Gigabit Ethernet (GE) |
| Similar model | Huawei LE1MGSC20DE0 |
| Transmission distance | 20 km |
| Transmission speed | 1 Gigabit Ethernet (GE) |
| Similar model | Huawei LE2MGSC80DE0 |
| Transmission distance | 80 km |
| Transmission speed | 1 Gigabit Ethernet (GE) |
HUAWEI LE2MGSC40DE0 pecification
LE2MGSC40DE0 Specifications |
|
| Mark | Huawei |
| Product name | LE2MGSC40DE0 |
| Type | Optical transceiver |
| Form Factor | eSFP |
| Data transfer speed | 1.25 Gbps (GE) |
| Fashion | BIDI (bidirectional) |
| Type of Fiber | Single-mode fiber (SMF) |
| Transmitter wavelength | 1310 nm |
| Receiver wavelength | 1490 nm |
| Maximum distance | 40 km |
| Connector type | LC |
| Supply voltage | 3.3 V |
| operating temperature | 0°C to 70°C |
| Storage temperature | -40°C to 85°C |
| Protocol | IEEE 802.3z |
| DDM/DOM support | Yes |
| RoHS Compliance | Yes |
| Energy consumption | <1W |
| Digital diagnostics | Yes |
| Application | Gigabit Ethernet |
| MTBF | Over 1 million hours |
| Guarantee | Year 1 |
