H3C LS-5170-28S-HPWR-EI 24-Port PoE+ Gigabit Switch with 4×10G SFP+ Uplinks Keywords
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
H3C
Product Description
LS-5170-28S-HPWR-EI Overview
The H3C LS-5170-28S-HPWR-EI is a high-performance intelligent gigabit access switch designed for enterprise campus and SMB networks. It features 24 PoE+ Gigabit ports (370W total PoE budget) to power IP phones, APs, and surveillance cameras, plus four 10G SFP+ uplinks for high-bandwidth aggregation. Built with advanced ASIC technology, it supports IPv4/IPv6 dual stack, rich Layer 3 routing, QoS, and comprehensive security features. This switch delivers reliable, secure, and easy-to-manage connectivity for modern network deployments.

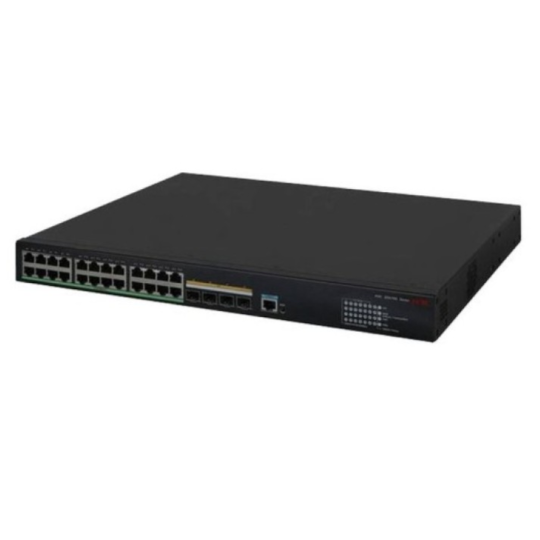

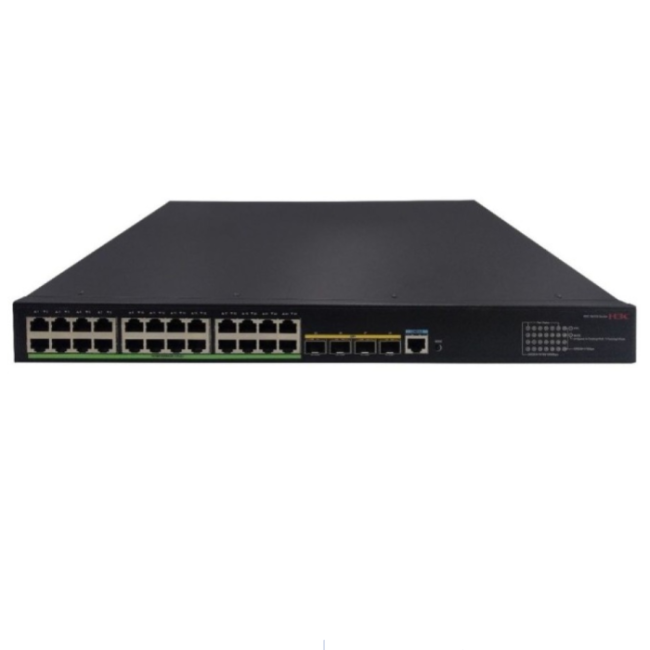

Figure 1 shows the front panel of LS-5170-28S-HPWR-EI.
Quick Specs
Table 1 shows the Quick Specs.
| Item | Details |
|---|---|
| Model | LS-5170-28S-HPWR-EI |
| Ports | 24×10/100/1000BASE-T (PoE+), 4×1G/10G SFP+ |
| PoE Budget | 370W |
| Switching Capacity | 256Gbps |
| Forwarding Rate | 96Mpps |
| Power | 100–240V AC |
| Dimensions | 440×320×43.6mm |
EWP-WA6636-FIT pecification
| Parameter | Specification |
|---|---|
| Product Model | LS-5170-28S-HPWR-EI (S5170-28S-HPWR-EI) |
| Interface | 24× 10/100/1000BASE-T Ethernet (PoE+ IEEE 802.3af/at)
|
| Performance | Switching capacity: 256Gbps
|
| PoE | PoE+ output: 370W (max)
|
| Layer 3 | IPv4/IPv6 dual stack
|
| Management | SNMP v1/v2c/v3, CLI, Telnet, SSH 2.0
|
| Security | 802.1X, AAA, RADIUS, HWTACACS
|
| Power | Input: 100–240V AC, 50/60Hz
|
| Environment | Operating temp: -5°C to 45°C
|
| Physical | Dimensions: 440 × 320 × 43.6 mm
|
