Huawei CloudEngine S5755-H48UM4Y2CZ 48-Port Multi-Gigabit PoE++ Switch with 25GE/100GE Uplink
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Huawei
Product Description
Huawei S5755-H48UM4Y2CZ Overview
The Huawei CloudEngine S5755-H48UM4Y2CZ is a high-performance multi-gigabit access switch built for enterprise campuses, Wi-Fi 6/7 networks, and smart buildings. It features 48 multi-rate (1/2.5/5/10G) Base-T ports with 90W PoE++ (IEEE 802.3bt) to power high-power APs, cameras, and IoT devices. Four 25GE SFP28 and two 100GE QSFP28 uplinks deliver high-bandwidth aggregation. With advanced ASIC design, it supports IPv4/IPv6 dual stack, VXLAN virtualization, and comprehensive security feature. N+1 power redundancy ensures high reliabilit. This switch is ideal for building agile, secure, and future-proof access network

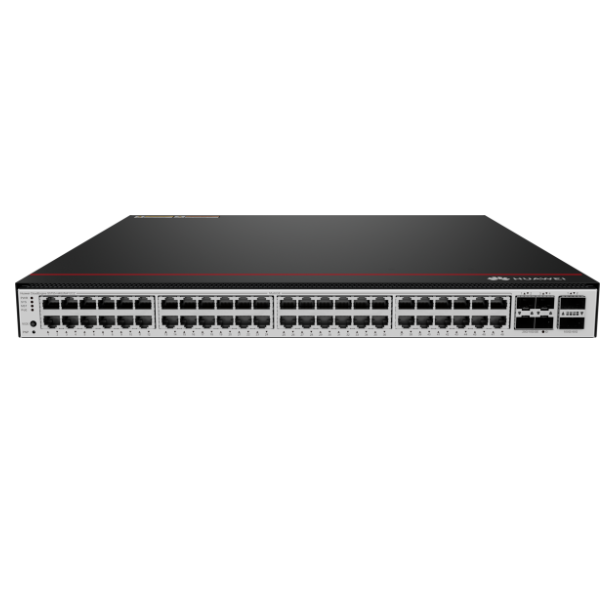

Figure 1 shows the front panel of S5755-H48UM4Y2CZ.
Quick Specs
| Item | Details |
|---|---|
| Model | S5755-H48UM4Y2CZ |
| Ports | 48× 1/2.5/5/10G Base-T (PoE++), 4× 25GE SFP28, 2× 100GE QSFP28 |
| PoE | 90W PoE++ (IEEE 802.3bt) |
| Switching Capacity | 1.96/2.4 Tbps |
| Forwarding Rate | 760 Mpps |
| Power | N+1 redundant power |
Huawei CEL36CQFD-G Specification
| Parameter | Specification |
|---|---|
| Product Model | CloudEngine S5755-H48UM4Y2CZ |
| Interfaces | 48× 10/100/1000/2500/5000/10000BASE-T Ethernet (PoE++)
|
| Performance | Switching capacity: 1.96 Tbps / 2.4 Tbps
|
| PoE | PoE++ (IEEE 802.3bt), up to 90W per port
|
| Layer 3 | IPv4/IPv6 dual stack
|
| Management | SNMP v1/v2c/v3, CLI, Telnet, SSH 2.0
|
| Security | MACsec, 802.1X, AAA, RADIUS, HWTACACS
|
| Power | N+1 redundant power supply
|
| Environment | Operating temperature: -5°C to 45°C
|
| Physical | Rack-mountable, 1U height |
