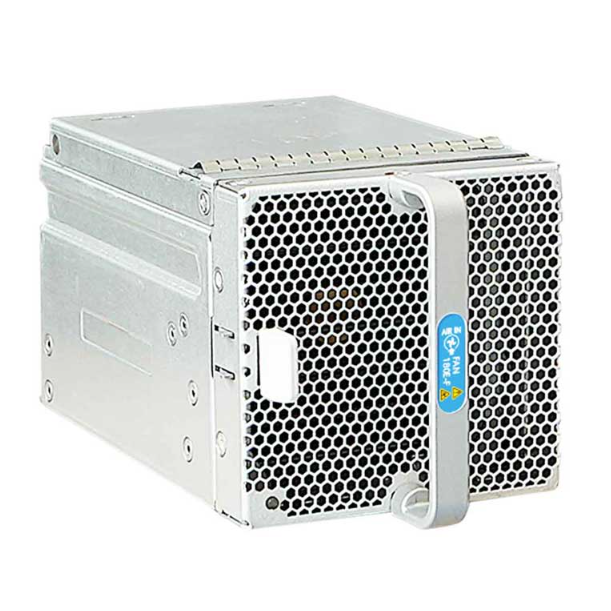

HUAWEI FAN-180E-F Front-to-Back Airflow Fan Module for CloudEngine 8800 Series Switches
Huawei FAN-180E-F Overview
The HUAWEI FAN-180E-F is a high-performance, hot-swappable fan module designed for the CloudEngine 8800 series data center switches. It features front-to-back airflow with a maximum capacity of 180 CFM, delivering powerful cooling to maintain optimal operating temperatures for high-density, high-performance switching hardware. Supporting hot-swappable installation, it allows for replacement without system downtime, ensuring continuous network operation. With a wide operating voltage range (7V–15V) and robust thermal design, this fan module is engineered to meet the demanding cooling requirements of modern data center environments, enhancing system reliability and longevity.
| Item | Details |
|---|---|
| Part Number | FAN-180E-F |
| Airflow Direction | Front-to-Back (Fan Panel Side Intake) |
| Compatibility | HUAWEI CloudEngine 8800 Series Switches (e.g., CE8850-64CQ-EI) |
| Type | Hot-Swappable Fan Module |
| Max Airflow | 180 CFM |
Huawei FAN-180E-F Specification
| Parameter | Specification |
|---|---|
| Part Number | FAN-180E-F |
| Product Type | Switch Cooling Fan Module |
| Airflow Direction | Front-to-Back (Fan Panel Side Intake) |
| Compatibility | HUAWEI CloudEngine 8800 Series Switches |
| Hot-Swappable | Yes |
| Max Airflow | 180 CFM |
| Operating Voltage | 7V–15V |
| Max Power Consumption | 86W |
| Max Fan Speed | 13200 RPM (Front), 11340 RPM (Rear) |
| Function | Efficient heat dissipation for high-density data center switches |
