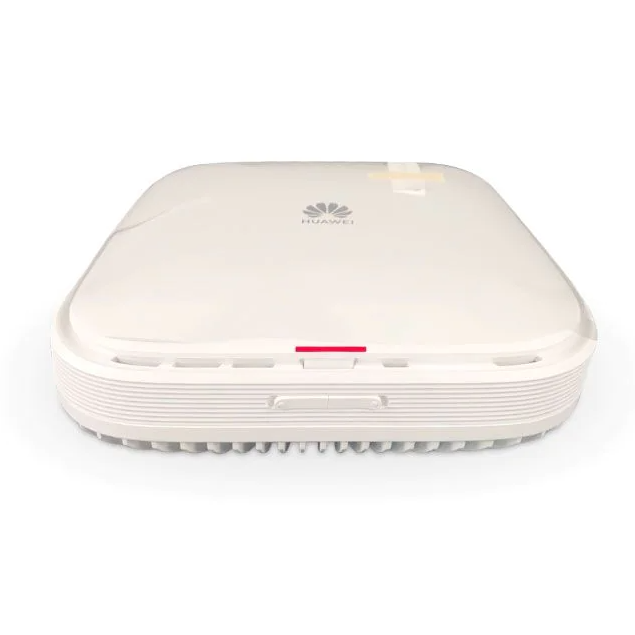

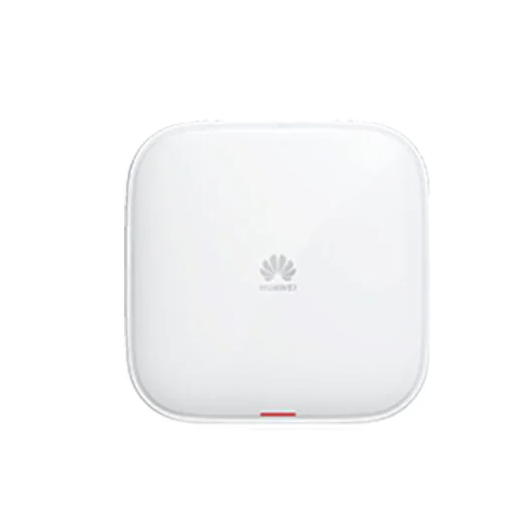

AirEngine-6760-X1, Huawei AirEngine 6760-X1 Indoor WiFi 6 AP, WiFi 6/Smart Antennas/1x10GE

Model

Huawei AirEngine 6760-X1

AirEngine 5760-51

Maximum Number of Users

1024 (dual-radio mode)
1152 (triple-radio mode)
Note: The actual number of users varies according to the environment

1024 (dual-radio mode)

1152 (triple-radio mode)

Note: The actual number of users varies according to the environment.

Port

1 x 10 GE, 1 x GE electrical, and 1 x 10 GE SFP+

1 x 5 GE and 1 x GE electrical

IoT

Built-in IoT slots

Built-in IoT slots

Antenna Type

Built-in Smart Antennas

Built-in Smart Antennas

Radio Protocols

802.11a/b/g/n/ac/ac Wave 2/ax

802.11a/b/g/n/ac/ac Wave 2/ax

Maximum Rate

Basic capability: 8.35 Gbit/s
RTU license upgrade: 10.75 Gbit/s

Basic capability: up to 5.37 Gbit/s

RTU license upgrade: up to 5.95 Gbit/s

Huawei AirEngine 6760-X1 Specification

Dimensions (H x W x D)

61 mm x 220 mm x 220 mm

Power Input

DC: 48 V ± 10%
PoE power supply: in compliance with IEEE 802.3bt

Maximum Number of Users

≤ 1024 (dual-radio mode)
≤ 1152 (triple-radio mode)
Note: The actual number of users varies according to the environment

Port

1 x 10 GE, 1 x GE electrical, and 1 x 10 GE SFP+

IoT

Built-in IoT slots

Operating Temperature

–10°C to 50°C

Antenna Type

AirEngine 6760-X1: Built-in Smart Antennas

MIMO: Spatial Streams

Basic capability:
2.4 GHz: 4x4:4; 5 GHz: 6x6:6
Capability upgrade via RTU license:
2.4 GHz: 4x4:4; 5 GHz: 8x8:8
2.4 GHz: 4x4:4; 5 GHz-0: 4x4:4; 5 GHz-1: 4x4:4

Radio Protocols

802.11a/b/g/n/ac/ac Wave 2/ax

Maximum Rate

Basic capability: 8.35 Gbit/s
RTU license upgrade: 10.75 Gbit/s
