AirEngine 5761R-11, Huawei AirEngine Series Outdoor Access Point, 11ax dual-band, Built-in antenna, Bluetooth
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
AirEngine5761R-11E Overview
Airengine5761R-11 (11ax outdoor, 2 + 2 dual frequency, built-in antenna, Bluetooth)
AirEngine 5761R-11 provides services on the 2.4 GHz (2 x 2 MIMO) and 5 GHz (2 x 2 MIMO) frequency bands, achieving a device rate of up to 1.775 Gbit/s. While AirEngine 5761R-11E also provides the same services on the same bands 2.4 GHz (2 x 2 MIMO) and 5 GHz (2 x 2 MIMO) it can also offer services on 5 GHz (2 x 2 MIMO) and +5 GHz (2 x 2 MIMO) frequency bands, achieving a maximum device rate of 2.4 Gbit/s.

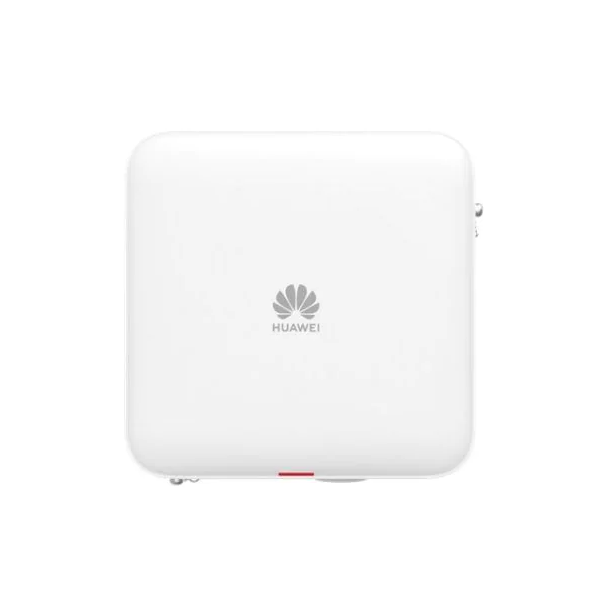

Figure 1 shows the front panel of AirEngine5761R-11E.
Quick Specs
| Power Input | PoE power supply: In compliance with 802.3at/af. |
| Maximum Power Consumption | AirEngine 5761R-11: 17.7W |
| Maximum Number of Users | 1024 |
| Operating Temperature | 40°C to +65°C |
| Antenna Type | AirEngine 5761R-11: Built-in Smart Antennas |
| MIMO: Spatial Streams | AirEngine 5761R-11: 2.4 GHz: 2 x 2:2, 5 GHz: 2 x 2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac wave2/ax |
| Maximum Rate | AirEngine 5761R-11: 1.775 Gbit/s |
HUAWEI AirEngine5761R-11E Specification
| AirEngine 5761R-11 Specification | |
| Power Input | PoE power supply: In compliance with 802.3at/af. |
| Maximum Power Consumption | AirEngine 5761R-11: 17.7W |
| Maximum Number of Users | 1024 |
| Operating Temperature | –40°C to +65°C |
| Antenna Type | AirEngine 5761R-11: Built-in Smart Antennas |
| MIMO: Spatial Streams | AirEngine 5761R-11: 2.4 GHz: 2 x 2:2, 5 GHz: 2 x 2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac wave2/ax |
| Maximum Rate | AirEngine 5761R-11: 1.775 Gbit/s |
