Huawei CloudEngine S5755-H24UN4Y2CZ 24-Port 2.5G PoE Switch with 100G Uplink

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 2-3 days

Brand: Huawei

Product Description

Huawei S5755-H24UN4Y2CZ Overview

The Huawei CloudEngine S5755-H24UN4Y2CZ is a high-performance 2.5G multi-Gigabit campus switch designed for Wi-Fi 6/7 wireless access and enterprise aggregation. It provides 24×2.5GBASE-T PoE++ ports (90W per port) to power high-density APs and IoT devices, paired with 4×25GE and 2×100GE uplinks for scalable, low-latency core connectivity.

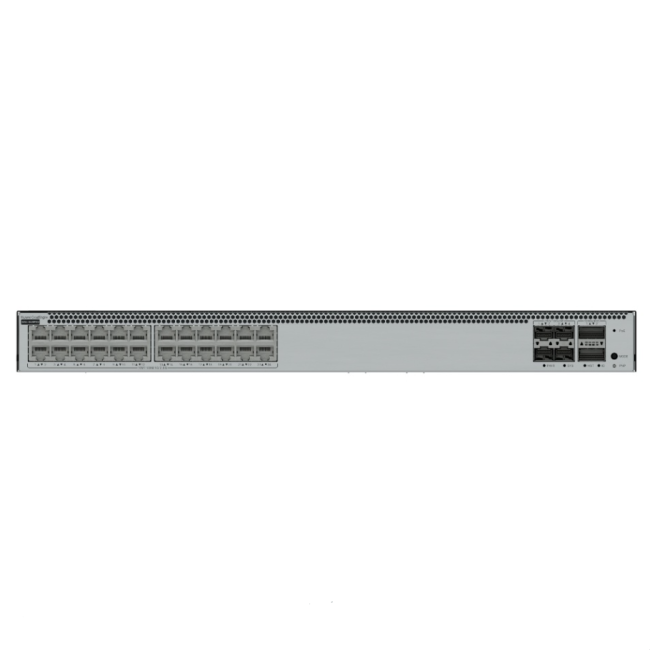

Figure 1 shows the front panel of S5755-H24UN4Y2CZ.

Quick Specs

Item	Specification
Ports	24×2.5G Base-T, 4×25GE SFP28, 2×100GE QSFP28.
PoE	90W PoE++, 3×PSU, N+1 backup.
Capacity	2.56/25.6 Tbps, 840 Mpps.
Features	VXLAN, MACsec, iStack.
Use Case	Wi-Fi 6/7 access, enterprise campus.

Huawei S5755-H24UN4Y2CZ Specification

Parameter	Details
Model	CloudEngine S5755-H24UN4Y2CZ
Switching Capacity	2.56 Tbps (packet), 25.6 Tbps (fabric).
Forwarding Performance	840 Mpps.
Fixed Ports	24×100M/1/2.5G Base-T 4×1/10/25GE SFP28 2×40/100GE QSFP28.
PoE Standard	IEEE 802.3bt (PoE++), 90W per port.
Power Supply	3×AC/DC PSU, N+1 redundancy.
MAC Address Table	Up to 256K entries
VLAN	4K VLANs, QinQ, VXLAN
Security	Port-based MACsec, 802.1X, ACL.
Stacking	iStack (up to 9 units)
Dimensions	442×420×43.6 mm (1U)
Environment	-5°C to 45°C, 5%–95% RH
