Cisco CW9164I-ROW Catalyst 9164I Wi-Fi 6E Tri-Band Indoor Wireless Access Point

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 2-3 days

Brand: Cisco

Product Description

Cisco CW9164I-ROW Overview

The Cisco CW9164I-ROW is a high-performance, enterprise-grade indoor wireless access point from the Catalyst 9164 series, designed for next-generation hybrid work environments. It is a tri-band Wi-Fi 6E (802.11ax) device that unlocks the new 6 GHz band, delivering significantly increased capacity, reduced interference, and ultra-high throughput up to 7.49 Gbps.

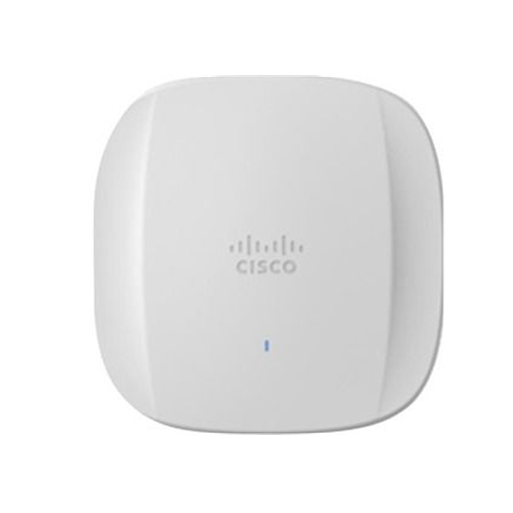

Figure 1 shows the front panel of CW9164I-ROW.

Quick Specs

Item	Specification
Model	CW9164I-ROW
Standard	IEEE 802.11ax (Wi-Fi 6E)
Bands	Tri-band (2.4 GHz, 5 GHz, 6 GHz)Cisco
Radio Config	2x2 (2.4G), 4x4 (5G), 4x4 (6G) + BLE & ScanningCisco
Speed	Up to 7.49 Gbps
Interface	1x 2.5G Ethernet, USB 2.0, ConsoleCisco
Antenna	Internal omnidirectionalCisco
Management	Cisco DNA / Meraki CloudCisco
Regulatory	ROW (Rest of World)

Cisco CW9164I-ROW Specification

Parameter	Details
Product Model	Cisco Catalyst CW9164I-ROW
Wireless Standard	Wi-Fi 6E (802.11ax), backward compatible with 802.11a/b/g/n/ac
Frequency Bands	2.4 GHz, 5 GHz, 6 GHz (Tri-band)Cisco
Radio Composition	5 Radios total: • 2.4 GHz: 2x2:2 MU-MIMO • 5 GHz: 4x4:4 MU-MIMO • 6 GHz: 4x4:4 MU-MIMO • Tri-band scanning/CleanAir radio • Bluetooth 5.1 (BLE) IoT radioCisco
Max Data Rate	7.49 Gbps (Combined)
Wired Ports	• 1 x 10/100/1000/2500BASE-T (2.5G MultiGig) • 1 x RJ-45 Console • 1 x USB 2.0 (4.5W)Cisco
Antenna	Internal, omnidirectional, integratedCisco
Power Input	802.3bt (PoE++), 802.3at (PoE+), UPOE, or 54V DCCisco
Dimensions	241.3 x 241.3 x 56.9 mm (WxDxH)Cisco
Weight	1.60 kg (3.54 lbs)Cisco
Management	Cisco DNA Center (On-prem) or Meraki Dashboard (Cloud)Cisco
Security	WPA3, Enhanced Open, 802.11w, 802.11ai
Advanced Features	OFDMA, MU-MIMO (UL/DL), CleanAir Pro, SD-Access, BLE BeaconsCisco
Regulatory Domain	ROW – Rest of World
