Huawei AirEngine 5761-12 Indoor Wi-Fi 6 Access Point

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 2-3 days

Brand: HUAWEI

Product Description

HUAWEI AirEngine5761-12 Overview

Huawei AirEngine 5761-12 is a high-performance indoor wireless access point supporting the Wi-Fi 6 (802.11ax) standard. It features a dual-radio, dual-band (2.4 GHz & 5 GHz) design with 2×2 MIMO on each band, delivering a combined wireless speed of up to 1.775 Gbps

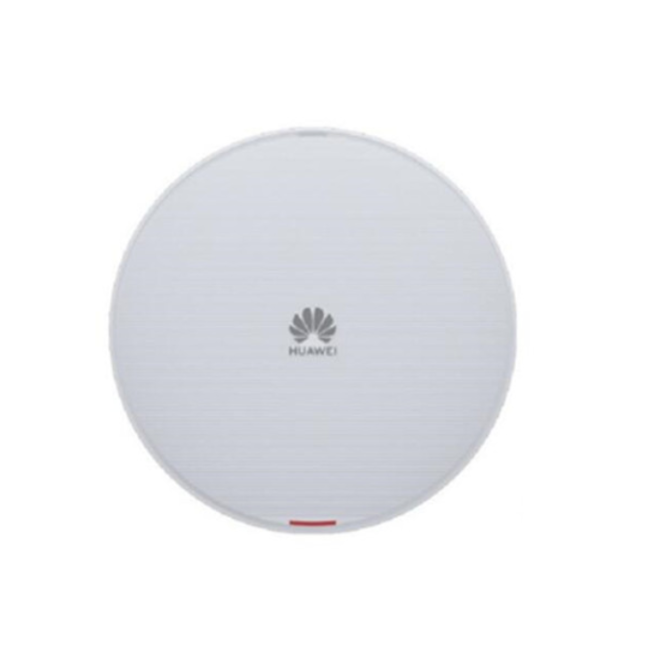

Figure 1 shows the front panel of AirEngine5761-12.

Quick Specs

Item	Specification
Wi-Fi Standard	Wi-Fi 6 (802.11ax).
Band	2.4GHz + 5GHz Dual-Band.
MIMO	2x2 & 2x2.
Max Rate	1.775Gbps.
Ports	2×GE (RJ45).
Power	PoE 802.3at/af.
IoT	BLE 5.2, USB, Dual IoT Slots.

Cisco CW9164I-ROW Specification

Parameter	Details
Model	AirEngine 5761-12.
Wireless Standard	802.11a/b/g/n/ac/ax (Wi-Fi 6).
Frequency Band	2.4 GHz & 5 GHz.
MIMO Configuration	2.4 GHz: 2x2; 5 GHz: 2x2.
Max. Data Rate	2.4 GHz: 575 Mbps; 5 GHz: 1.2 Gbps; Total: 1.775 Gbps.
Ethernet Ports	2×10/100/1000BASE-T (RJ45).
IoT Module	Built-in BLE 5.2, USB 2.0, Dual IoT (PCIe) Slots.
Antenna	Built-in Dual-Band Smart Antennas.
Power Supply	PoE: 802.3af/at; DC: 12V±10%.
Power Consumption	12.63W (Max, excl. USB).
Dimensions	Φ220 mm × 51 mm.
Operating Temperature	-10°C to +50°C.
Management Modes	Fat, Fit, Cloud-Managed.
