AirEngine 8760-X1-PRO, Huawei AirEngine WiFi 6 AP, 2x10GE/Smart Antennas/PoE 802.3bt
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
HUAWEI AirEngine8760-X1-PRO Overview
Huawei AirEngine 8760-X1-PRO is an advanced Indoor WiFi 6 Access Point designed for high-density environments. Leveraging 802.11a/b/g/n/ac/ac Wave 2/ax, it ensures superior connectivity with built-in smart antennas. Ideal for enterprises, educational institutions, and public venues, it supports PoE power supply compliant with IEEE 802.3bt. Equiped with 2 x 10 GE electrical and 1 x 10 GE SFP+ interfaces, it offers robust, flexible, and high-speed networking.

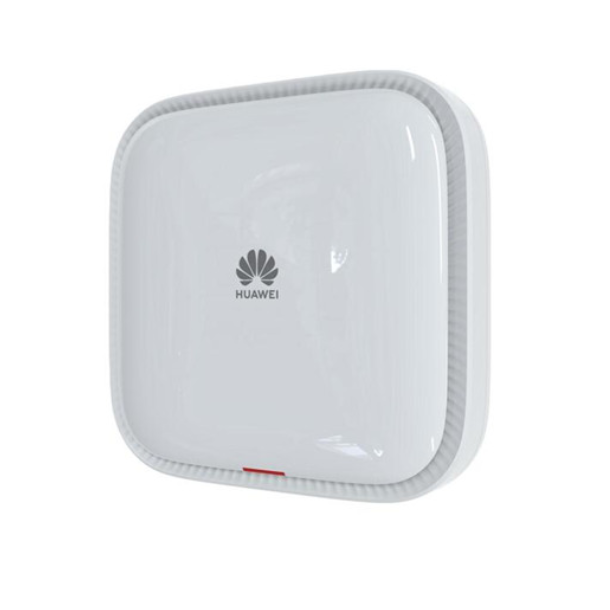

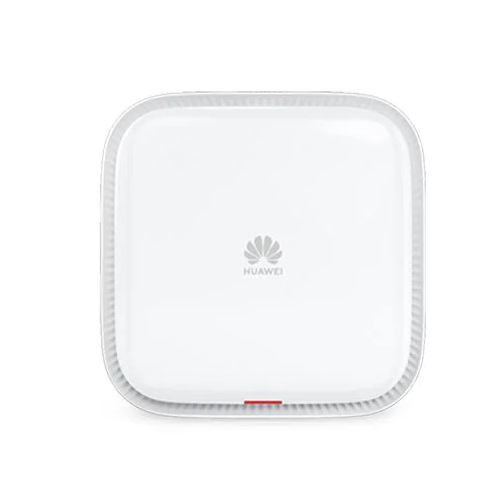

Figure 1 shows the front panel of AirEngine8760-X1-PRO.
Product Features Comparison
| Feature | AirEngine 8760-X1-PRO | Cisco Catalyst 9130AX | Aruba AP-635 | Ruckus R750 | Juniper Mist AP43 | Ubiquiti UniFi 6 Pro | Netgear WAX630 |
|---|---|---|---|---|---|---|---|
| WiFi Standard | 802.11ax | 802.11ax | 802.11ax | 802.11ax | 802.11ax | 802.11ax | 802.11ax |
| Antenna Type | Smart Antennas | Internal | Internal | Internal | Internal | Internal | Internal |
| PoE Standard | 802.3bt | 802.3at | 802.3at | 802.3at | 802.3at | 802.3at | 802.3at |
| Max Data Rate | 10 Gbps | 5.2 Gbps | 3.55 Gbps | 4.8 Gbps | 5.9 Gbps | 4.8 Gbps | 6 Gbps |
| Management | Cloud/On-premise | Cloud/On-premise | Cloud/On-premise | Cloud/On-premise | Cloud/On-premise | Cloud/On-premise | Cloud/On-premise |
Optional Add-ons
| Model | Description |
|---|---|
| PoE Injector | IEEE 802.3bt compliant PoE Injector |
| External Antenna | High-gain external antenna for extended range |
| Mounting Kit | Wall and ceiling mount brackets |
Huawei AirEngine 8760-X1-PRO Specification
| AirEngine 8760-X1-PRO Specification | |
| Model | AirEngine 8760-X1-PRO |
| Power Input | DC: 48 V ± 10% |
| Maximum Number of Users | ≤ 1024 (dual-radio); ≤ 1152 (triple-radio) |
| Port | 2 x 10 GE electrical and 1 x 10 GE SFP+ |
| Built-in Bluetooth | BLE 5.0 |
| IoT | Built-in IoT slots |
| Operating Temperature | –10°C to 50°C |
| Antenna Type | Built-in Smart Antennas |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | 10.75 Gbit/s |
