S5735-L24T4S-A-V2, Huawei S5735-L Series Switch, 24x1GE RJ45/4x10GE SFP+/AC Power
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Huawei
Product Description
Huawei S5735-L24T4S-A-V2 Overview
Huawei's S5735-L24T4S-A-V2 switch is designed for optimal performance in enterprise networks. Offering 24 GE electrical ports and 4 10GE SFP+ uplinks, it ensures high-speed connectivity. Ideal for IT environments requiring robust and efficient network management, target customers include data centers, campus networks, and enterprise IT departments.

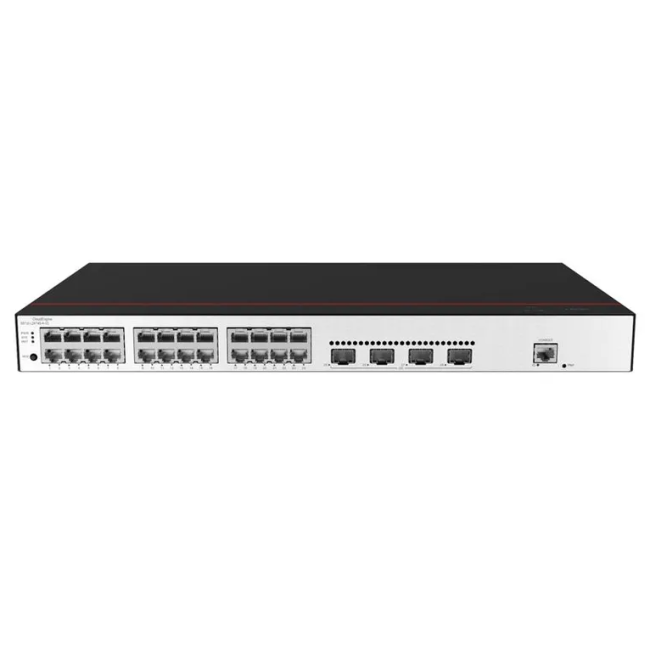

Figure 1 shows the front panel of S5735-L24T4S-A-V2.
Product Features Comparison
| Features | Huawei S5735-L24T4S-A-V2 | Huawei S5735-L48T4S-A | Huawei S5735-L24T4S-PWR | Aruba 2930F 24G | Cisco Catalyst 9200L | Juniper EX2300-24T | HP 1820-24G |
|---|---|---|---|---|---|---|---|
| GE Ports | 24 | 48 | 24 | 24 | 24 | 24 | 24 |
| 10GE Uplinks | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Power Supply | Dual AC | Dual AC | PWR | Single | Dual AC | Single | Single |
| Fan Type | 4 Fan Box | 4 Fan Box | 4 Fan Box | 1 Fan | 2 Fan | 1 Fan | No Fan |
| Usage Scenario | Enterprise | Enterprise | Enterprise | SMB | Enterprise | Enterprise | SMB |
Optional Add-ons
| Model | Description |
|---|---|
| Huawei SFP-10G-SR | 10G SFP+ Transceiver (850nm, 300m, MMF) |
| Huawei RPS1800 | Redundant Power Supply |
| Huawei Fan Box | Replacement Fan Box (Front to Back Airflow) |
Huawei S5735-L24T4S-A-V2 Specification
S5735-L24T4S-A-V2 Specifications |
|
| Model | S5735-L24T4S-A-V2 |
| Interface Types | 24 x 1GE electric ports, 4 x 10GE SFP+ ports |
| Power Supply | 2 x AC power supply |
| Fan Box | 4 x fan box, front side blowing |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Switching Capacity | 336 Gbps |
| Packet Forwarding Rate | 252 Mpps |
| MAC Address Table | 32K |
| AR (IPv4 Route) Table Size | 16K |
| AR (IPv6 Route) Table Size | 8K |
| ACL Table Size | 6K |
| VLAN IDs | 4K |
| Operating Temperature | -5°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Power Consumption | Max. 60W |
| Mean Time Between Failures (MTBF) | 200,000 hours |
| Mounting Options | Rack-mounted |
| Layer Type | Layer 3 |
| Software Features | STP, RSTP, MSTP, VRRP, DHCP, VLAN, QoS |
| Compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae |
