SFP-10/25G-CSR-S=, Cisco SFP Module, 10/25G, 300m, LC Duplex

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 2-3 days

Brand: Cisco

Product Description

Cisco SFP-10/25G-CSR-S= Overview

The SFP-10/25G-CSR-S= is a dual-rate 10/25GBASE-CSR SFP module. This high-speed, high-capacity transceiver is an ideal solution for data center networking and other environments where high data rates are necessary.

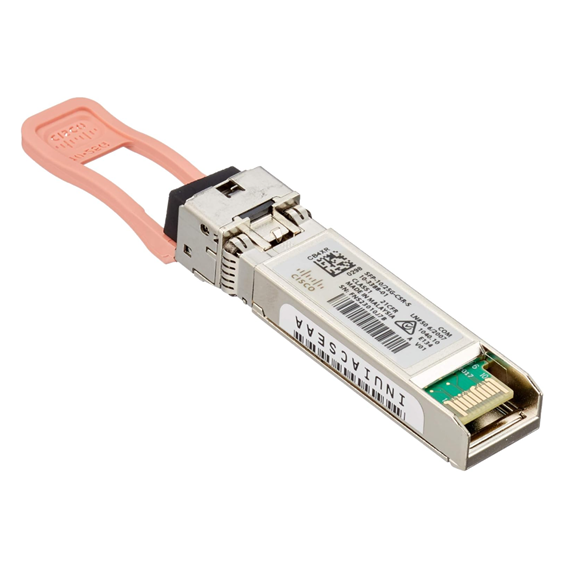

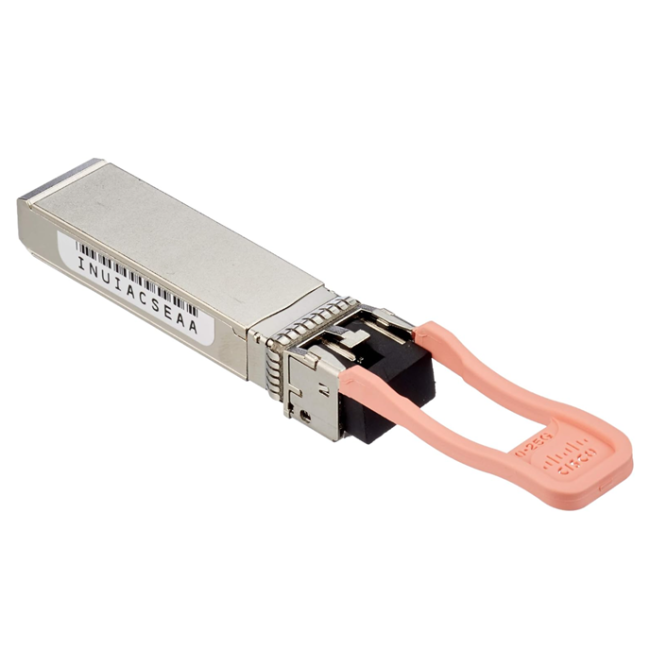

Figure 1 shows the front panel of SFP-10/25G-CSR-S=.

Quick Specs

Table 1 shows the quick spec of the SFP-10/25G-CSR-S=.

Product Code	SFP-10/25G-CSR-S=
Manufacturer	Cisco
Product Type	SFP Module
Interface	10/25GBASE-CSR
Speed	10/25G

Cisco SFP-10/25G-CSR-S= Specification

SFP-10/25G-CSR-S Specifications
Wavelength (nm)	850
Cable Type	MMF
Core Size (Microns)	50.0
Modal Bandwidth	500 (OM2)
Cable Distance	70m (25G) 82m (10G)
Type	10G	25G
	Maximum: +2.4 Minimum: -7.3	Maximum: +2.4 Minimum: -6
Transmit Power (dBm)^*	Maximum: +2.4 Minimum: -9.9	Maximum: +2.4 Minimum: -8.7
Receive Power (dBm)^*	Maximum: +2.4 Minimum: -9.9	Maximum: +2.4 Minimum: -8.7
Transmit and Receive Wavelength (nm)	840 to 860	840 to 860
Cable Type	MMF
Cable Distance	300/400m (OM3/OM4)^*
Max Power Consumption (W)	1.2
Pull Tab /Bail Latch Color	Peach
