Cisco GLC-TE= 1000BASE-T SFP Copper RJ45 Transceiver Module
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Cisco
Product Description

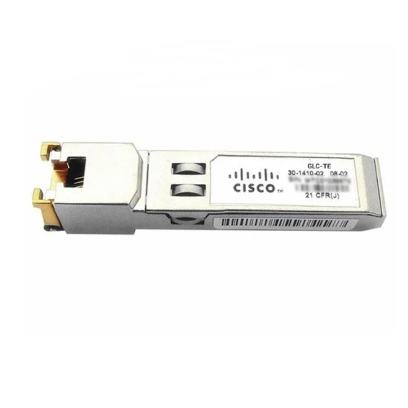

Cisco GLC-TE= Overview
The Cisco GLC-TE= is a high-performance, hot-swappable 1000BASE-T copper SFP transceiver. It converts a Gigabit Ethernet port to an RJ45 interface, enabling seamless connectivity over standard twisted-pair copper cables (Cat5e/Cat6) for distances up to 100 meters.

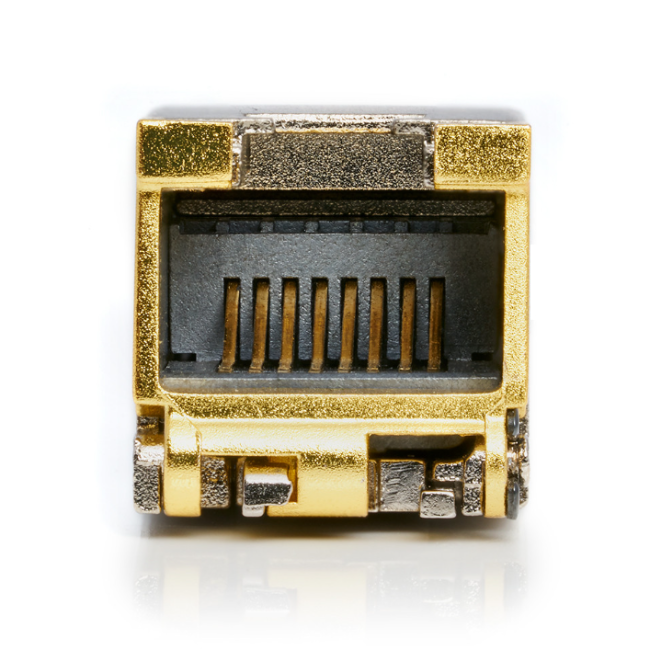

Figure 1 shows the front panel of GLC-TE=.
Quick Specs
Table 1 shows the quick spec of the SFP-10/25G-CSR-S=.
| Parameter | Specification |
|---|---|
| Part Number | GLC-TE= |
| Type | 1000BASE-T SFP |
| Connector | RJ-45 |
| Data Rate | 10/100/1000 Mbps |
| Distance | Up to 100m (Cat5e/Cat6) |
| Temp. Range | Extended (-5°C to 85°C) |
| Support | Auto-Negotiation, Auto MDI/MDIX |
Cisco GLC-TE= Specification
| Parameter | Details |
|---|---|
| Product Model | Cisco GLC-TE= |
| Form Factor | Small Form-factor Pluggable (SFP) |
| Standard | IEEE 802.3ab 1000BASE-T |
| Interface | RJ-45 Copper Port |
| Data Transfer Rate | 10 Mbps, 100 Mbps, 1000 Mbps (Auto-Negotiation) |
| Cable Type | Category 5e (Cat5e) or Category 6 (Cat6) UTP |
| Transmission Distance | 100 meters (328 feet) |
| Operating Temperature | Extended: -5°C to +85°C |
| Power Consumption | Low power (approx. 0.75W) |
| Digital Monitoring (DOM/DDM) | Supported |
| Hot Swappable | Yes |
| Compatibility | Cisco Catalyst switches, ISR routers, etc. |
| Dimensions | 8.5 x 13.4 x 56.5 mm |
| Regulatory | FCC, CE, RoHS Compliant |
