OMXD30000, Huawei SFP+ Optical Transceiver, 10G, Multi-mode, 0.3km
Huawei OMXD30000 is a 10GBASE-iLR Optical Transceiver. It’s a Single-mode Module.

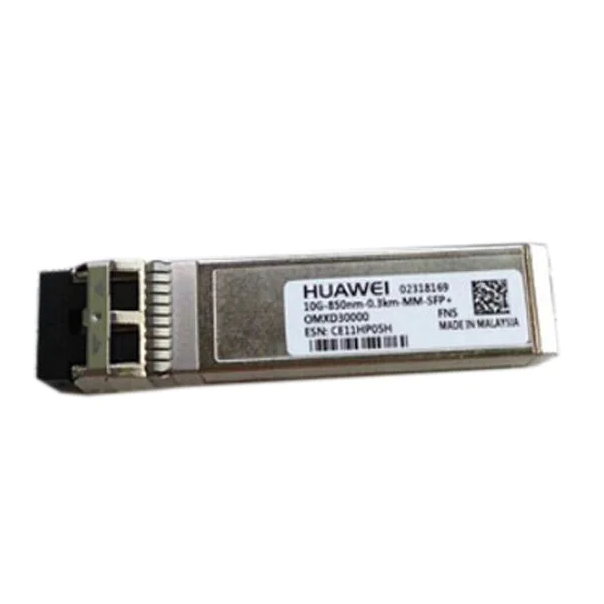

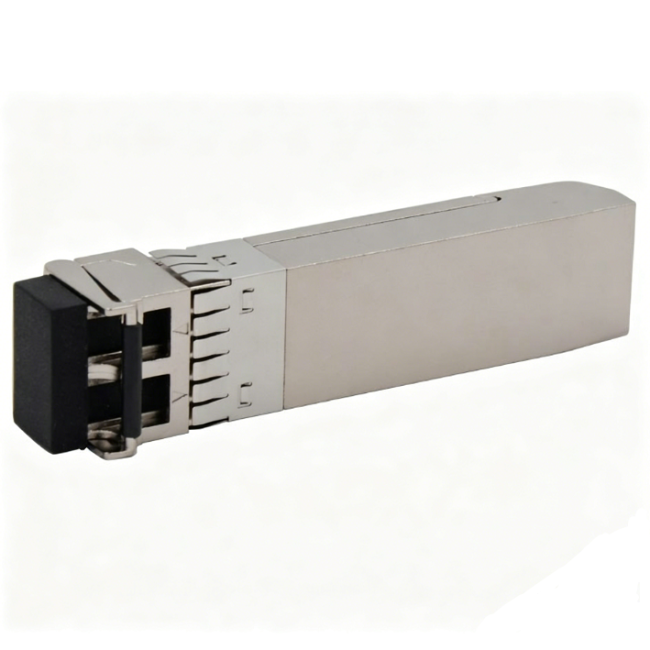

Figure 1 shows the front panel of OMXD30000.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
OMXD30000 |
|
Transceiver form factor |
SFP+ |
|
Transmission speed |
10 Gbit/s |
|
Center wavelength (nm) |
1310 |
|
Standard compliance |
10GBASE-iLR |
|
Connector type |
LC |
|
Applicable cable and maximum transmission distance |
Single-mode fiber: 1.4 km |
|
Transmit power (dBm) |
-8.2 to +0.5 |
|
Maximum receiver sensitivity (dBm) |
-14.4 |
|
Overload power (dBm) |
0.5 |
|
Extinction ratio (dB) |
3.5 |
|
Operating temperature |
-40°C to +85°C (-40°F to +185°F) |
Compare to Similar Items
|
Item |
OSX010000 |
OMXD30000 |
|
Transceiver form factor |
SFP+ |
SFP+ |
|
Transmission speed |
10 Gbit/s |
10 Gbit/s |
|
Center wavelength (nm) |
1310 |
1310 |
|
Standard compliance |
10Gbase-LR |
10GBASE-iLR |
|
Connector type |
LC |
LC |
|
Applicable cable and maximum transmission distance |
Single-mode fiber: 10 km |
Single-mode fiber: 1.4 km |
|
Transmit power (dBm) |
-8.2 to +0.5 |
-8.2 to +0.5 |
|
Maximum receiver sensitivity (dBm) |
-12.6 |
-14.4 |
|
Overload power (dBm) |
0.5 |
0.5 |
|
Extinction ratio (dB) |
3.5 |
3.5 |
|
Operating temperature |
0°C to 70°C (32°F to 158°F) |
-40°C to +85°C (-40°F to +185°F) |
Huawei SFP-GE-LX-SM1310 Specification
OMXD30000 Specification |
|
|
Transceiver form factor |
SFP+ |
|
Transmission speed |
10 Gbit/s |
|
Center wavelength (nm) |
1310 |
|
Standard compliance |
10GBASE-iLR |
|
Connector type |
LC |
|
Applicable cable and maximum transmission distance |
Single-mode fiber: 1.4 km |
|
Transmit power (dBm) |
-8.2 to +0.5 |
|
Maximum receiver sensitivity (dBm) |
-14.4 |
|
Overload power (dBm) |
0.5 |
|
Extinction ratio (dB) |
3.5 |
|
Operating temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Weight |
0.03 kg |
