AirEngine 6760-X1E, Huawei AirEngine Outdoor WiFi 6 Access Point, 802.11a/b/g/n/ac/ax/External Smart Antennas/IEEE 802.3bt PoE/1x10GE RJ45/1xGE RJ45/1x10GE SFP+
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
HUAWEI AirEngine6760-X1E Overview
The Huawei AirEngine 6760-X1E represents a significant leap forward in outdoor WiFi technology. Merging the latest WiFi 6 standards with robust exterior design, this outdoor Access Point (AP) is engineered to withstand challenging environments while delivering superior connectivity. With support for 802.11a/b/g/n/ac/ac Wave 2/ax protocols and external smart antennas, it ensures high-speed, reliable wireless communication. This model stands out for its compatibility with PoE power supply in adherence to IEEE 802.3bt, alongside versatile connection options including 1 x 10 GE electrical, 1 x GE electrical, and 1 x 10 GE SFP+. Dive into the specifications that make the AirEngine 6760-X1E a cornerstone for advanced outdoor networking solutions.

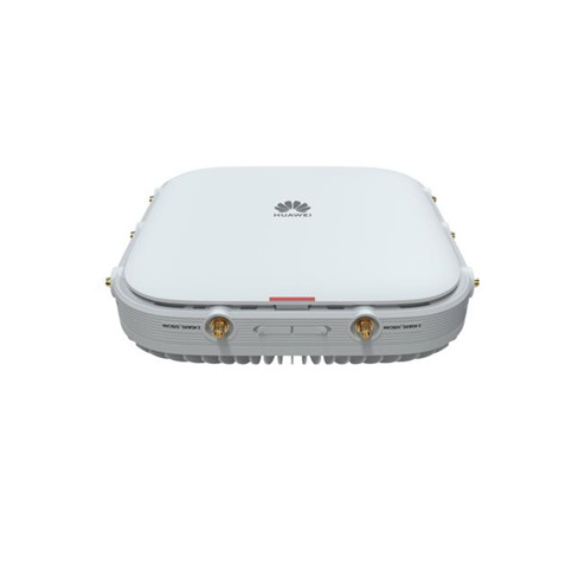

Figure 1 shows the front panel of AirEngine6760-X1E.
Quick Spec
| WiFi Standards | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Antenna Type | External Smart Antennas |
| Power Supply | IEEE 802.3bt PoE |
| Connection Ports | 1 x 10 GE electrical, 1 x GE electrical, 1 x 10 GE SFP+ |
| Application | Outdoor |
Supported Options
| External Antennas | Model-specific designs for enhanced range |
| Mounting Kits | Robust options for various outdoor installations |
| Power Injectors | IEEE 802.3bt compliant for extended operations |
Compare to Similar Items
| Model | Differences |
| AirEngine 5760-X1 | Standard WiFi 6, indoor use, less port variety |
| AirEngine 8760-X1-PRO | Higher performance, indoor and outdoor, expanded antenna support |
| AirEngine 6760R-X1 | Redundant power supply, similar port configuration, indoor/outdoor |
HUAWEI AirEngine 6760-X1E Specification
AirEngine 6760-X1E Specifications |
|
| Brand | Huawei |
| Product Name | AirEngine 6760-X1E |
| Category | Outdoor WiFi 6 Access Point |
| WiFi Standards | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Antennas | External Smart Antennas |
| Power Supply | PoE, IEEE 802.3bt compliant |
| Ports | 1 x 10 GE electrical, 1 x GE electrical, 1 x 10 GE SFP+ |
| Number of Ports | 3 |
| Max Data Rate | Up to 9.6 Gbps (theoretical maximum) |
| Encryption | WPA, WPA2, WPA3 |
| MIMO | Yes |
| Beamforming | Supported |
| Water and Dust Resistance | Yes (specific rating not provided) |
| Mounting | Wall or Pole Mounted |
| Operating Temperature | -40??C to +65??C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Management | Cloud and on-premises management options |
| Dimensions (H x W x D) | Information Not Provided |
| Compliance | FCC, CE, RoHS |
| Additional Features | AI-powered interference control, location-based services |
| Warranty | Manufacturer warranty (specific terms not provided) |
