S5735-S48P4XE-V2, Huawei S5735 Switch, 48xGE PoE+/4x10GE SFP+
The Huawei S5735-S48P4XE-V2 is a high-performance Layer 3 managed Gigabit Ethernet switch designed for enterprise campus networks, SMB networks, and high-density PoE deployments. It provides 48 x 10/100/1000BASE-T PoE+ ports and 4 x 10GE SFP+ uplink ports, delivering scalable bandwidth and reliable power for IP phones, wireless access points, and surveillance systems.
With advanced Layer 3 routing capabilities, strong PoE power delivery, and flexible uplink options, this model is ideal for modern converged networks requiring high availability, security, and simplified management.

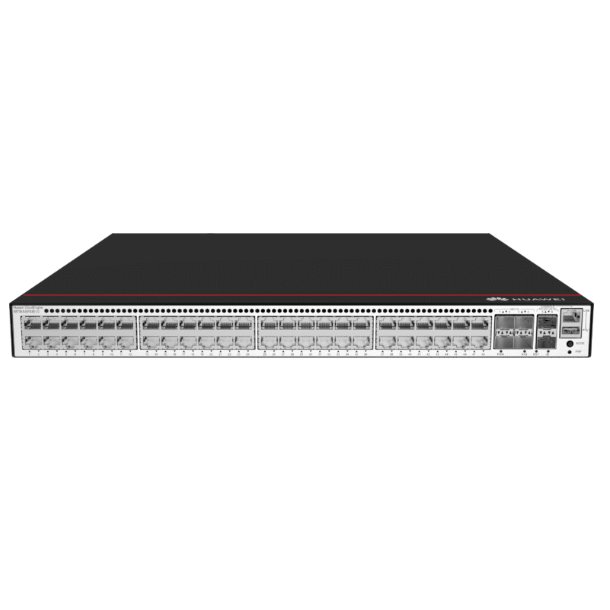

Figure 1 shows the front panel of S5735-S48P4XE-V2.
- 48 × Gigabit RJ45 PoE+ access ports (IEEE 802.3af/at)
- 4 × 10GE SFP+ uplink ports for high-speed aggregation
- Layer 3 routing: static route, RIP, OSPF, IS-IS (depending on license/software version)
- High PoE power budget for IP cameras and Wi-Fi APs
- Support VLAN segmentation, QoS, ACL security policies
- Stackable architecture for scalability and redundancy
- Enterprise-grade reliability with VRRP and link redundancy
- Smart traffic management for voice, video, and data convergence
| Item | Specification |
|---|---|
| Model | S5735-S48P4XE-V2 |
| Downlink Ports | 48 × 10/100/1000BASE-T PoE+ |
| Uplink Ports | 4 × 10GE SFP+ |
| Switching Capacity | Up to 336 Gbps |
| Forwarding Rate | Up to 108 Mpps |
| MAC Address Table | 16K |
| VLAN Support | Up to 4094 VLANs |
| Routing Protocols | Static, RIP, OSPF, IS-IS |
| Power Supply | AC (hot-swappable PSU supported depending on configuration) |
| Operating Temperature | -5°C to 50°C |
| Installation | Rack-mounted (1U) |
Ideal for enterprise access layer switching, supporting thousands of endpoints such as PCs, printers, and IP phones.
Supports PoE+ for powering large-scale IP camera deployments in smart cities, factories, and buildings.
Provides stable PoE power for Wi-Fi 5 / Wi-Fi 6 access points, ensuring seamless wireless coverage.
Acts as a reliable aggregation switch for small and medium business networks requiring Layer 3 routing.
| Feature | S5735-S48P4XE-V2 | S5735-S48P4S-A | S5735-L48T4X-A1 |
|---|---|---|---|
| PoE Support | Yes (PoE+) | Yes | Optional / Limited |
| 10G Uplink | 4 × SFP+ | 4 × SFP+ | 4 × SFP+ |
| Layer | L3 | L2/L3 Lite | L3 |
| Target Use | Enterprise access | SMB access | Entry enterprise |
| Performance | Higher | Medium | Medium |
The S48P4XE-V2 offers full 48-port PoE+ support and 10G uplinks, making it more suitable for high-power endpoint environments compared to non-PoE or lower uplink models.
Yes. It supports PoE+ (IEEE 802.3at), which is sufficient for most IP cameras and enterprise Wi-Fi 6 access points.
Yes, it supports Layer 3 features such as static routing, RIP, OSPF, and IS-IS, depending on firmware version and license configuration.
It supports up to 48 PoE devices directly, and more via downstream switches using 10G uplinks.
10GE uplinks eliminate bandwidth bottlenecks between access and aggregation layers, improving performance for video surveillance, cloud access, and enterprise applications.
Typical enterprise distribution includes:
- Hardware warranty support (depending on supplier)
- Remote technical assistance
- Replacement or repair options (RMA support)
- Firmware upgrade guidance
