SFP-10G-CU1M, Huawei SFP+ High Speed Direct-attach Cable, 10G, 1m, Indoor Use
Huawei SFP-10G-CU1M is the compatible 10G SFP+ 1M passive direct attach copper TWINAX cable.

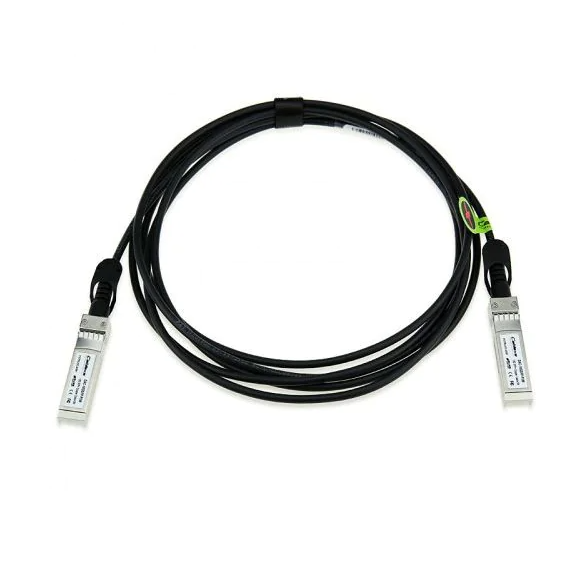

Figure 1 shows the front panel of SFP-10G-CU1M.
Quick Specs
Table 1 shows the Quick Specs.
|
Model |
SFP-10G-CU1M |
|
Form Factor |
SFP+ DAC Cable |
|
Passive or actively equalized |
Passive |
|
Cable Length |
1m |
|
CableType |
Twinax |
|
Minimum cable bend radius |
25 mm |
|
Connector |
SFP+/SFP+ |
Product Details
SFP-10G-CU1M provides these features:
- lower cost than SFP+ optical transceiver and active optical cable (AOC)
- Support for multi-gigabit data rates up to 10.5Gbps
- Support for 1x, 2x, 4x and 8x Fibre Channel data rates
- Hot-pluggable SFP 20PIN footprint
- I/O Connector designed for high-speed differential signal applications
- Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance
- Single 3.3V power supply
- Compatible to SFP+ MSA
- Operating temperature range: 0°C to 70°C
- RoHS Compliant and Lead-Free
Huawei SFP-10G-CU1M Specification
Huawei SFP-10G-CU1M Specification |
|
|
Form Factor |
SFP+ DAC Cable |
|
Passive or actively equalized |
Passive |
|
Cable Length |
1 m |
|
Cable Type |
Twinax |
|
Minimum cable bend radius |
25 mm |
|
Connector |
SFP+/SFP+ |
|
Environment |
Operating: 0°C to 70°C |
|
Application |
Storage Area Networks( SAN) Network Attached Storage The switched fabric I/O High-density connections between networking equipment Data center cabling infrastructure |
|
Data Rate |
10.5Gb/s |
|
Supply Voltage |
3.3V |
|
Cable impedance |
100 Ω |
|
Wire Gauge |
30AWG |
|
Cable Jacket Type |
PVC |
|
Digital Diagnostic Monitoring |
N/A |
|
Compliance |
SFF-8472,SFF-8431 IEC/EN 61000-4-2 MIL-STD -883E, RoHS |
