Huawei PAC180S12-CN 180W 12V AC/DC Power Module for S5735/S620 Switches
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
HUAWEI PAC180S12-CN Overview

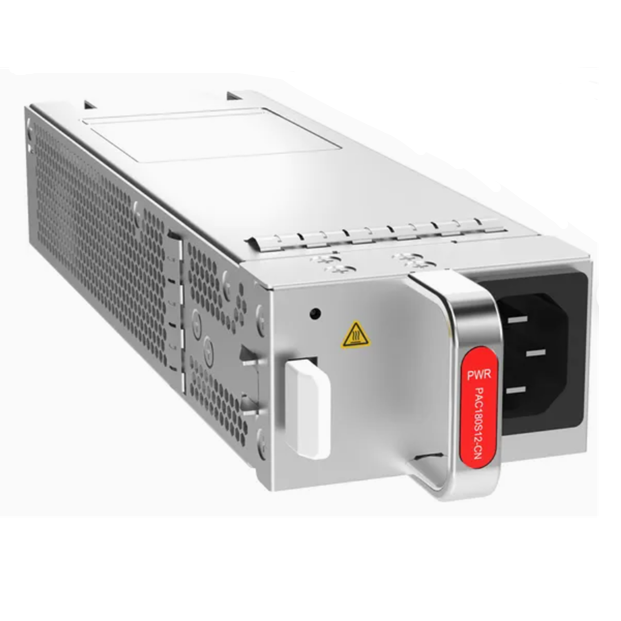

The PAC180S12-CN is a high-efficiency, 180W power module designed for Huawei enterprise switches. It supports both AC and high-voltage DC input, delivering a stable 12V DC output. Featuring a fanless, natural cooling design and hot-swappable capability, it ensures reliable, low-noise operation in critical network environments. Ideal for Huawei S5735 and S620 series switches, it provides robust power with comprehensive protections and long-term durability.

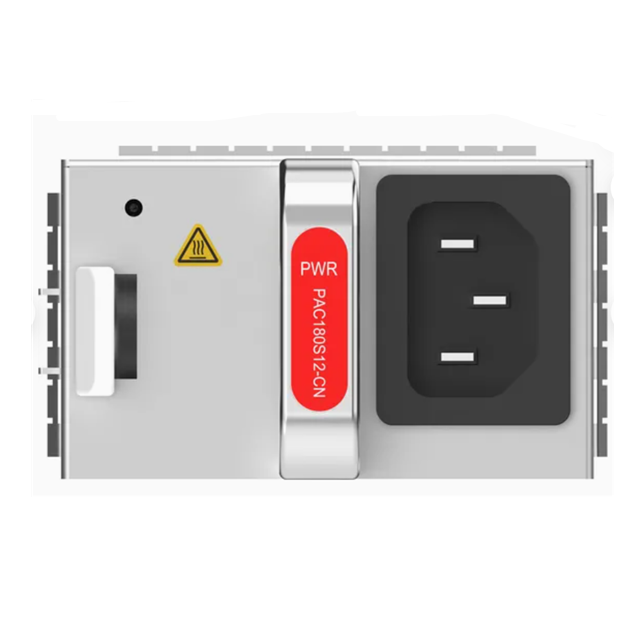

Figure 1 shows the front panel of PAC180S12-CN.
Quick Specs
| Specification | Details |
|---|---|
| Part Number | PAC180S12-CN |
| Type | 180W AC/DC Power Module |
| Input | 90~290V AC, 190~290V DC |
| Output | 12V DC, 15A |
| Cooling | Fanless (Natural Convection) |
| Hot-swappable | Yes |
| Compatibility | Huawei S5735, S620 Series Switches |
HUAWEI PAC1000S56-CB Specification
| Parameter | Value |
|---|---|
| Model | PAC180S12-CN |
| Rated Output Power | 180W |
| Output Voltage | 12V DC |
| Output Current | 15A |
| Input Voltage (AC) | 90–290V AC, 45–66Hz |
| Input Voltage (DC) | 190–290V DC |
| Max Input Current | 3A |
| Cooling Method | Natural heat dissipation (Fanless) |
| Dimensions (D×W×H) | 205mm × 90mm × 40mm |
| Weight | 0.62kg |
| MTBF | >100,000 hours |
| Protection | Over-voltage, Over-current, Over-temperature |
