Cisco SFP-10/25G-LR-I 10/25GBASE-LR Industrial SFP28 Transceiver, 1310nm, 10km, LC, DOM
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Cisco
Product Description
Cisco SFP-10/25G-LR-I Overview
The Cisco SFP-10/25G-LR-I is a high-performance, industrial-temperature SFP28 optical transceiver module designed for dual-rate 10 Gigabit and 25 Gigabit Ethernet applications. It operates at a 1310nm wavelength over standard G.652 single-mode fiber (SMF), providing reliable 10km transmission via a duplex LC connector.

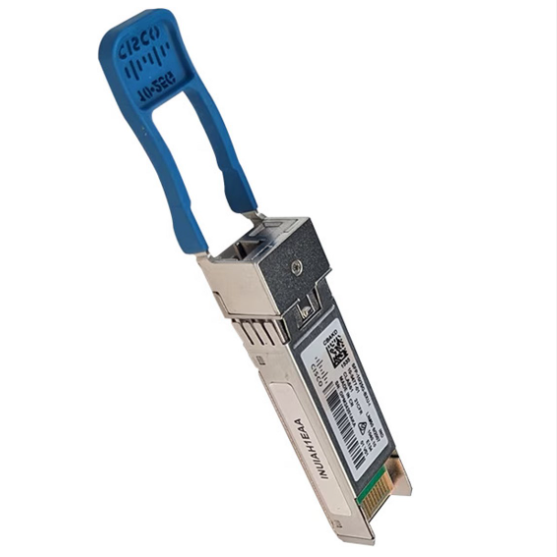

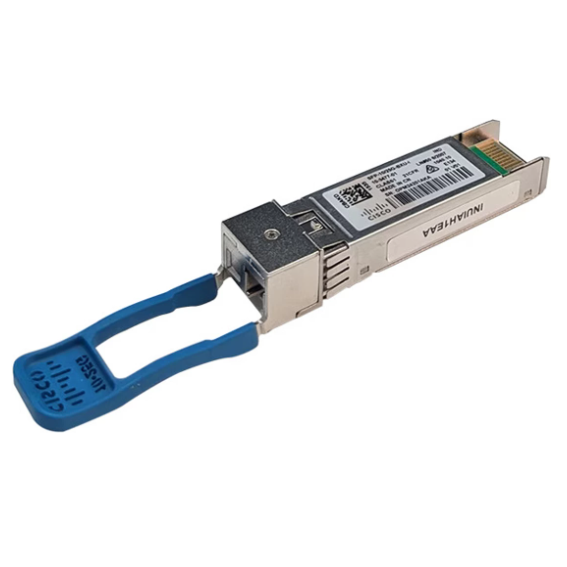

Figure 1 shows the front panel of SFP-10/25G-LR-I.
Quick Spacs
| Parameter | Specification |
|---|---|
| Form Factor | SFP28 |
| Data Rate | 10Gbps / 25Gbps |
| Wavelength | 1310nm |
| Reach | 10km (SMF) |
| Connector | Duplex LC |
| Fiber Type | Single-mode (SMF, G.652) |
| DOM/DDM | Supported |
| Temp Range | -40°C to +85°C (Industrial) |
| Power Consumption | < 1.3W |
Cisco SFP-10/25G-LR-I Specification
| Parameter | Details |
|---|---|
| Part Number | SFP-10/25G-LR-I |
| Brand | Cisco |
| Standard | SFP28 MSA, IEEE 802.3by, IEEE 802.3cc |
| Application | 10GBASE-LR, 25GBASE-LR, CPRI/eCPRI (Options 7-10) |
| Optical Interface | Duplex LC Connector |
| Transmitter | 1310nm DFB Laser |
| Receiver | PIN Photodiode |
| Transmit Power (25G) | -5.5 ~ +2.0 dBm |
| Transmit Power (10G) | -6.7 ~ +0.5 dBm |
| Receive Sensitivity (25G) | ≤ -14.8 dBm |
| Receive Sensitivity (10G) | ≤ -15.9 dBm |
| Modulation | NRZ |
| FEC | RS-FEC required for 25G operation |
| Power Supply | 3.3V ±5% |
| Diagnostics | Digital Optical Monitoring (DOM/DDM) |
| Laser Class | Class 1 (FDA & IEC 60825-1) |
| Compliance | RoHS-6, CE, TAA |
| Hot-pluggable | Yes |
