C9200L-24T-4G-A, Cisco Catalyst 9200L Switch, 24x1G Data/4x1G Uplink/Network Advantage
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Cisco
Product Description
Cisco C9200L-24T-4G-A Overview
The Cisco C9200L-24T-4G-A is an advanced enterprise-grade switch engineered to deliver reliable, high-speed connectivity for dynamic business environments. As part of the renowned Cisco 9200 series, this cisco model is tailored for organizations requiring a scalable and secure network backbone. Featuring 24 data downlink ports and 4 fixed 1G uplinks, the c9200l-24t-4g-a offers robust performance and operational flexibility with fixed redundant fans and a Network Advantage software package. Its support for 80 Gbps stacking bandwidth and efficient switching capacity ensures optimal network traffic management, making it a strong fit for dense office deployments and distributed locations across varied geographies. With Cisco’s trusted hardware reliability and emphasis on enterprise-class resilience, the platform provides 16,000 MAC addresses, up to 11,000 IPv4 routes, and extensive support for VLAN and SVI scalability. The C9200L-24T-4G-A stands out through intuitive management, security-rich architecture, and a design approach informed by evolving enterprise and cloud demands.

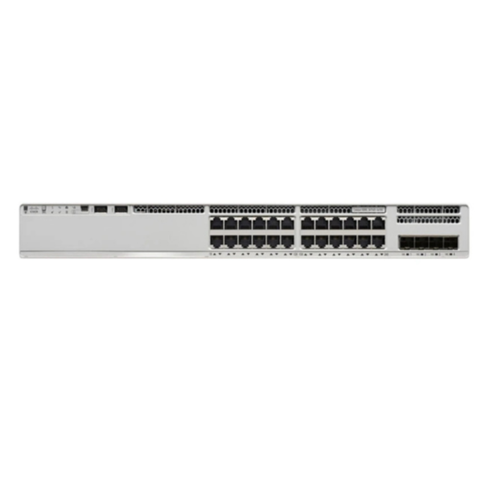

Figure 1 shows the front panel of C9200L-24T-4X-A.
Product Features Comparison
| Model | C9200L-24T-4G-A | C1-WSC3850-48XS-S | C1-N3K-C3264Q | C9500-32QC-A |
| Brand | Cisco | Cisco | Cisco | Cisco |
| Port Configuration | 24 ports data, 4x 1G fixed uplinks | 48 × 10 Gigabit Ethernet SFP+ ports | 64 × QSFP28 (100G) ports, breakout capable to 4 × 25G or 4 × 10G | n/a |
| Switching Capacity | 56 Gbps | 1,280 Gbps | 5.12 Tbps | Up to 3.2 Tbps |
| Forwarding Rate | 83.33 Mpps | 909 Mpps | 1.2 Bpps | Up to 1 Bpps |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | 80 Gbps | 480 Gbps | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| PWR-C5-125WAC | Cisco AC Power Supply Unit, recommended spare for C9200L-24T-4G-A switch. |
| C9200L-STACK-KIT | Cisco Catalyst 9200L Series stacking kit, for high-bandwidth switch stacking. |
| GLC-LH-SMD | Cisco Gigabit SFP module (long-range), compatible with C9200L uplink ports. |
Cisco C9200L-24T-4X-E Specification
Model
C9200L-24T-4G-A
Brand
Cisco
Downlinks total 10/100/1000 or PoE+ copper ports
24 ports data
Uplink configuration
4x 1G fixed uplinks
Default primary AC power supply
PWR-C5-125WAC
Fans
Fixed redundant
Software
Network Advantage
Chassis Dimensions
1.73 x 17.5 x 11.3 in / 4.4 x 44.5 x 28.8 cm
Virtual Networks
1
Stacking bandwidth
80 Gbps
Total number of MAC addresses
16,000
Total number of IPv4 routes (ARP plus learned routes)
11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries
3,000
IPv6 routing entries
1,500
Multicast routing scale
1,000
QoS scale entries
1,000
ACL scale entries
1,500
Packet buffer per SKU
6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries
16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM
2 GB
Flash
4 GB
VLAN IDs
1024
Total Switched Virtual Interfaces (SVIs)
512
Jumbo frames
9198 bytes
Switching capacity
56 Gbps
Forwarding rate
83.33 Mpps
Mean time between failures (hours)
531,030
