C9200L-24T-4X-A, Cisco Catalyst 9200L Switch, 24x GE, 4x 10GE uplink, Network Advantage
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Cisco
Product Description
Cisco C9200L-24T-4X-A Overview
The Cisco C9200L-24T-4X-A is an enterprise-class switch tailored for secure, scalable, and highly resilient business network environments. As a Cisco Catalyst member, it empowers organizations with robust, rack-mountable connectivity delivering outstanding reliability for branch offices, mid-sized businesses, and distributed campus deployments across Asia, Europe, Africa, and North America. This advanced switch features comprehensive Layer 3 routing functions natively, enabling streamlined network segmentation and simplified deployment. The integrated Network Advantage software suite provides cutting-edge security, automation, and monitoring, unlocking efficient management and policy enforcement for distributed enterprises and managed service providers.

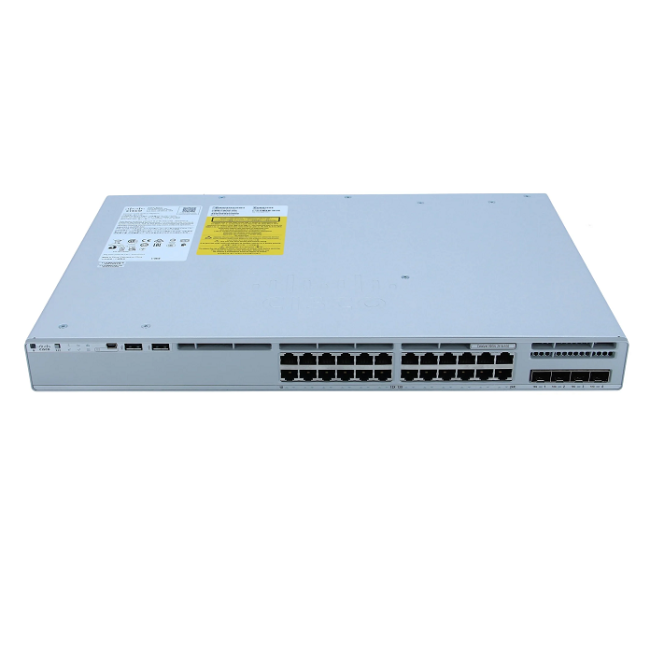

Figure 1 shows the front panel of C9200L-24T-4X-A.
Product Features Comparison
| Model | C9200L-24T-4X-A | C9200-48T-A | C1000-24T-4X-L | C9300L-24UXG2Q-10E |
| Brand | Cisco | Cisco | Cisco | Cisco |
| Port Configuration | 24 ports data 4x 10G fixed uplinks |
48 × 10/100/1000BASE-T (RJ45), 4 × 1G SFP Uplinks (C9200-NM-4X1G module included) | 24 × 10/100/1000BASE-T (RJ45), 4 × SFP+ Uplinks (10GBASE-X) | 16 x 10/100/1000 (UPOE) + 2 x 40Gb Ethernet + 8 x 1/2.5/5/10GBase-T |
| Switching Capacity | 128 Gbps | 96 Gbps | 128 Gbps | 352 Gbps |
| Forwarding Rate | 190.4 Mpps | 72 Mpps | 95.23 Mpps (64-byte L3 packets) | 261.9 Mpps |
| PoE Budget | n/a | Not supported (non-PoE model) | n/a | 722 W |
| Stacking Capability | 80 Gbps Stacking Bandwidth | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| PWR-C5-125WAC | Cisco AC Power Supply for C9200L Series Switches, ensures reliable power delivery. |
| C9200L-STACK-KIT | Cisco C9200L Stacking Kit, provides hardware for stacking switches in C9200L Series. |
| SFP-10G-SR | Cisco 10G SFP+ SR Transceiver Module, short-range fiber uplinks for high-speed connectivity. |
Cisco C9200L-24T-4X-E Specification
Model
C9200L-24T-4X-A
Brand
Cisco
Downlinks total 10/100/1000 or PoE+ copper ports
24 ports data
Uplink configuration
4x 10G fixed uplinks
Default primary AC power supply
PWR-C5-125WAC
Fans
Fixed redundant
Software
Network Advantage
Chassis Dimensions
1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm)
Virtual Networks
1
Stacking bandwidth
80 Gbps
Total number of MAC addresses
16,000
Total number of IPv4 routes (ARP plus learned routes)
11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries
3,000
IPv6 routing entries
1,500
Multicast routing scale
1,000
QoS scale entries
1,000
ACL scale entries
1,500
Packet buffer per SKU
6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries
16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM
2 GB
Flash
4 GB
VLAN IDs
1024
Total Switched Virtual Interfaces (SVIs)
512
Jumbo frames
9198 bytes
Wireless bandwidth per switch
N/A
Switching capacity
128 Gbps
Forwarding rate
190.4 Mpps
Mean time between failures (hours)
525,990
