Cisco C9200L-48P-4X-A Catalyst 9200L 48-Port PoE+ Switch 4x10G Uplink Network Advantage
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Cisco
Product Description
Cisco C9200L-48P-4X-A Overview
The Cisco C9200L-48P-4X-A is a Catalyst 9200L Series switch with 48-port full PoE+ and 4×10G SFP+ uplinks, preloaded with Network Advantage software. As part of Cisco’s intent-based networking portfolio, it delivers enterprise-grade performance, security, and scalability for campus and branch deployments. The switch supports up to 740W PoE budget for powering APs, cameras, and IoT devices. With StackWise-80 technology, it enables high-bandwidth stacking for simplified management and scalability.

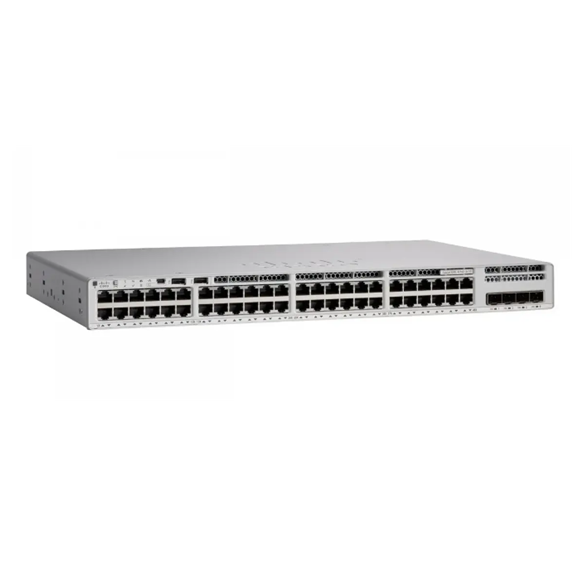

Figure 1 shows the front panel of C9200L-48P-4X-A.
Quick Spacs.
| Feature | Specification |
|---|---|
| Ports | 48x GE PoE+, 4x 10G SFP+ Uplink |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 261.9 Mpps |
| PoE Budget | 740W |
| Software | Network Advantage |
| Memory | 2 GB DRAM, 4 GB Flash |
| Stacking | StackWise-80, 80 Gbps |
| Dimensions | 1.73×17.5×11.3 in (4.4×44.5×28.8 cm) |
Cisco C9200L-48P-4G-E pecification
| Category | Item | Specification |
|---|---|---|
| Basic Info | Model Number | C9200L-48P-4X-A |
| Series | Cisco Catalyst 9200L | |
| Ports | Downlink Ports | 48 x 10/100/1000 RJ45 PoE+ |
| Uplink Ports | 4 x 10G SFP+ | |
| Performance | Switching Capacity | 176 Gbps |
| Forwarding Rate | 261.9 Mpps | |
| MAC Address Table | 16,000 Entries | |
| PoE Power | PoE Standard | IEEE 802.3af/at PoE+ |
| Total PoE Budget | 740W | |
| Memory & Storage | DRAM | 2 GB |
| Flash Memory | 4 GB | |
| Stacking | Stacking Technology | StackWise-80 |
| Stack Bandwidth | 80 Gbps | |
| Software | OS Version | Cisco IOS XE |
| License | Network Advantage | |
| Physical | Form Factor | 1U Rack-mount |
| Weight | 7.0 kg / 15.4 lb | |
| Features | Layer Support | Layer 2 / Layer 3 |
| Security | MACsec, ACL, VLAN Segmentation | |
| QoS | Advanced QoS & Traffic Shaping |
