Cisco C9200L-24T-4G-E Catalyst 9200L 24-Port Gigabit Switch 4x1G SFP Uplink Network Essentials
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Cisco
Product Description
Cisco C9200L-24T-4G-E Overview
The Cisco C9200L-24T-4G-E is a cost-effective, fixed-uplink enterprise access switch from the Catalyst 9200L series, designed for small-to-medium branch and campus deployments. It delivers 24 non-PoE Gigabit Ethernet ports for high-speed data connectivity and four fixed 1G SFP uplinks for flexible fiber or copper uplink options. Powered by Cisco IOS XE and UADP ASIC technology, it supports intent-based networking, robust security, and simplified managemen. With 56 Gbps switching capacity, 80 Gbps stacking bandwidth, and Network Essentials licensing, it provides reliable performance and basic Layer 3 routing capabilities at an affordable price point.

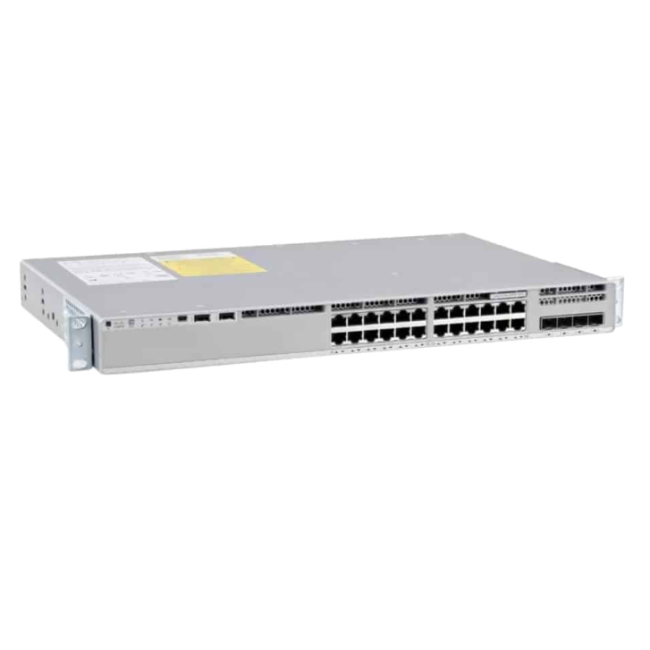

Figure 1 shows the front panel of C9200L-24T-4G-E.
Quick Space
| Feature | Specification |
|---|---|
| Model | C9200L-24T-4G-E |
| Downlink Ports | 24x 10/100/1000BASE-T (Data Only) |
| Uplink Ports | 4x 1G SFP (Fixed) |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| Stacking Bandwidth | 80 Gbps (StackWise-80) |
| Software License | Network Essentials |
| Power Supply | 125W AC (PWR-C5-125WAC) |
| Dimensions (HxWxD) | 1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm) |
| Weight | 4.35 kg |
Cisco C9200L-24T-4X-E Specification
| Category | Item | Specification |
|---|---|---|
| Basic Info | Product Model | C9200L-24T-4G-E |
| Series | Cisco Catalyst 9200L | |
| Port Configuration | Downlink Ports | 24 x 10/100/1000BASE-T RJ45 (Non-PoE) |
| Uplink Ports | 4 x Fixed 1G SFP Slots | |
| Performance | Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps | |
| Stacking Bandwidth | Up to 80 Gbps (StackWise-80) | |
| Memory & Storage | DRAM | 2 GB |
| Flash Memory | 4 GB | |
| Software License | License Level | Network Essentials |
| Layer 2 / Layer 3 | Maximum VLANs | 1024 |
| Supported SVIs | 512 | |
| Routing Protocol | Static Route, RIP, OSPF | |
| Security Features | Access Control | 802.1X, Port Security, ACL |
| Encryption | MACsec, TrustSec Support | |
| QoS | QoS Standards | 802.1p CoS, DSCP Marking, Traffic Shaping |
| Power & Cooling | Default Power Supply | Single 125W AC Power |
| Fan Module | Fixed Built-in Redundant Fan | |
| Physical Specs | Form Factor | 1U Rack-mount |
| Operating Temperature | 0°C ~ 45°C | |
| Operating Humidity | 10% ~ 90% Non-condensing | |
| Management | OS System | Cisco IOS XE |
| Management Mode | SNMPv3, REST API, DNA Center Compatible |
