Cisco C9200L-24P-4X-E Overview
The Cisco C9200L-24P-4X-E is an enterprise-class switch tailored for modern business networks requiring robust Power over Ethernet (PoE) and high-speed uplinks. As a core member of the Cisco 9200 family, the C9200L-24P-4X-E is built for secure, scalable connectivity across diverse environments. With 24 PoE+ ports, it effortlessly powers devices such as IP phones, wireless access points, and security cameras, simplifying network deployments in offices, campuses, and public spaces. Designed for flexibility, this cisco model integrates four SFP uplink ports for seamless fiber connectivity, making it ideal for rapid expansion and hybrid infrastructure projects.

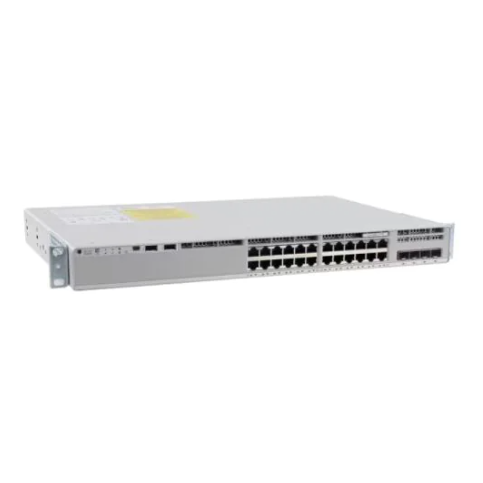

Figure 1 shows the front panel of C9200L-24P-4X-E.
Product Features Comparison
| Model | C9200L-24P-4X-E | C9300-24P-E | C1-WS3650-48PS/K9 | C1000-24P-4G-L |
| Brand | Cisco | Cisco | Cisco | Cisco |
| Port Configuration | 24 × 10/100/1000BASE-T PoE+, 4 × 1G SFP | 24 PoE+ | 48 × 10/100/1000BASE-T, 4 × 1G SFP uplinks | 24 × 10/100/1000BASE-T PoE+ (RJ45), 4 × SFP Uplinks (1000BASE-X) |
| Switching Capacity | n/a | 208 Gbps on 24-port Gigabit Ethernet model | 176 Gbps | 56 Gbps (1G) / 128 Gbps (10G) |
| Forwarding Rate | n/a | 154.76 Mpps | 77.37 Mpps | 41.67 Mpps (64-byte L3 packets) |
| PoE Budget | 445.35 W | 445W | n/a | 195 W (total) |
| Stacking Capability | n/a | Yes | StackWise-160 (up to 9 units) | n/a |
Optional Add-ons
| Model Number | Description |
| PWR-C5-600WAC | 600W AC Power Supply for Cisco C9200L Series Switches; ensures reliable PoE+ delivery. |
| GLC-LH-SMD | Cisco SFP 1000BASE-LX/LH Module for high-speed fiber uplinks and extended reach. |
| C9200L-STACK-KIT | Stacking Kit for Cisco 9200L Series; supports hardware-based switch stacking. |
Cisco C9200L-24P-4X-A Specification
Model
C9200L-24P-4X-E
Brand
Cisco
Form Factor
Rack-mountable, 1U
Dimensions (Chassis, H × W × D)
1.73 × 17.5 × 11.3 in (4.4 × 44.5 × 28.8 cm)
Dimensions (Chassis + FEP + Fan, H × W × D)
1.73 × 17.5 × 12.9 in (4.4 × 44.5 × 32.9 cm)
Mean Time Between Failures (MTBF)
390,310 hours
Operating Temperature
-5°C to +45°C (up to 10,000 ft / 3000 m)
Storage Temperature
-40°C to +70°C
Relative Humidity (Operating)
5% to 90% (non-condensing)
Power Supply
600W AC (PWR-C5-600WAC)
Acoustic Noise (LpA Typical/Max)
42 dB / 45 dB
Acoustic Noise (LwA Typical/Max)
5.3 B / 5.6 B
Fixed Ports
24 × 10/100/1000BASE-T PoE+
Uplink Ports
4 × 1G SFP
Management Ports
1 × RJ-45 Console, 1 × RJ-45 Management
Power Consumption (No Link/Full Traffic/Max PoE)
42.83 W / 51.08 W / 445.35 W
Safety Standards
UL 60950-1, IEC 62368-1, EN 60950-1
EMC Standards
FCC Part 15, CISPR 32, EN 55032
Environmental Compliance
RoHS 5 Compliant
Supported Protocols
SNMPv3, SSHv2, RADIUS/TACACS+
Core Standards
IEEE 802.1x, 802.1Q VLAN, 802.3af/at PoE
Weight
4.71 kg
