Cisco C9200-48T-A Catalyst 9200 48-Port Switch | Network Advantage
Product Overview
The Cisco Catalyst C9200-48T-A is the foundation for Intent-Based Networking, extending the power of Cisco’s leading Catalyst 9000 series to a wider-scale deployment. With its Network Advantage license, this 48-port data-only switch offers enterprise-class resiliency, advanced security, and simplified management for evolving business needs.
- Full Layer 3 Capabilities: Support for OSPF, EIGRP, ISIS, RIP, and routed access.
- High Resiliency: Field-replaceable units (FRU) including redundant power supplies and fans.
- Advanced Security: AES-128 MACsec encryption, Policy-Based Segmentation, and Trustworthy Solutions.
- Scalability: Supports StackWise-160 with up to 160 Gbps stacking bandwidth.

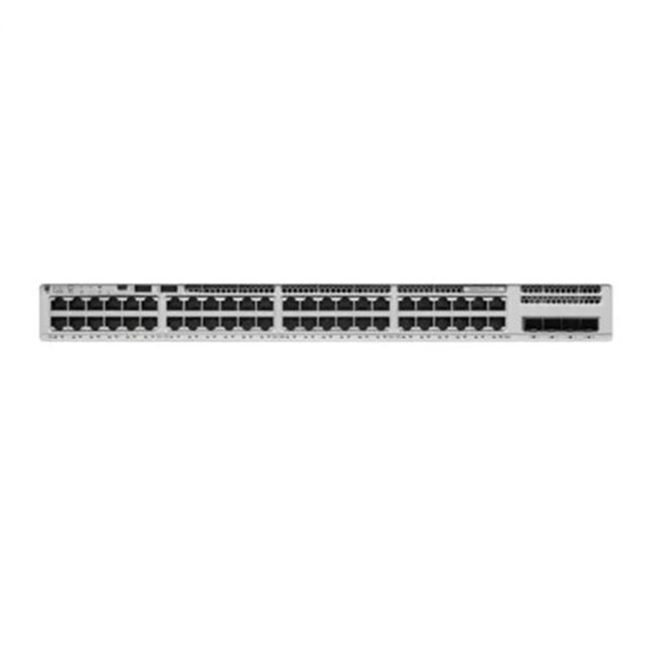

Figure 1 shows the front panel of C9200-48T-A.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Code | C9200-48T-A |
| Total 10/100/1000 Ports | 48 Ports Data |
| Uplink Configuration | Modular Uplinks Options |
| Default Software | Network Advantage |
| Stacking Bandwidth | 160 Gbps |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 261.9 Mpps |
Questions & Answers (FAQ)
Q1: How does the C9200-48T-A compare to the C9200L-48T-4G?
The C9200-48T-A is part of the modular series, supporting StackWise-160 (double the bandwidth of the fixed 'L' series) and flexible modular uplinks. Additionally, the Network Advantage license on this model unlocks full Layer 3 features and advanced automation, whereas the C9200L is typically used for basic access layer needs.
Q2: What SFP/SFP+ modules are compatible with this switch?
This switch supports a wide range of transceivers including 1G SFP and 10G SFP+ modules (e.g., SFP-10G-SR, SFP-10G-LR). By using the appropriate modular expansion slot, you can customize your high-speed fiber connectivity.
Q3: What is included in your After-Sales Service?
We provide a comprehensive service package: a 1-year hardware warranty, professional technical support for remote configuration, and rigorous quality testing before shipment. We ensure each Cisco unit is verified for performance and authenticity.
