Cisco C9300L-48PF-4G-E Catalyst 9300L 48-Port Full PoE+ Managed L3 Switch
The Cisco Catalyst C9300L-48PF-4G-E is a high-performance, enterprise-class stackable access switch designed for security, IoT, and the cloud. As part of the Catalyst 9300 Series—Cisco’s lead stackable enterprise switching platform—the C9300L models offer a fixed uplink solution tailored for cost-effective deployments without compromising on advanced Layer 3 features or security.

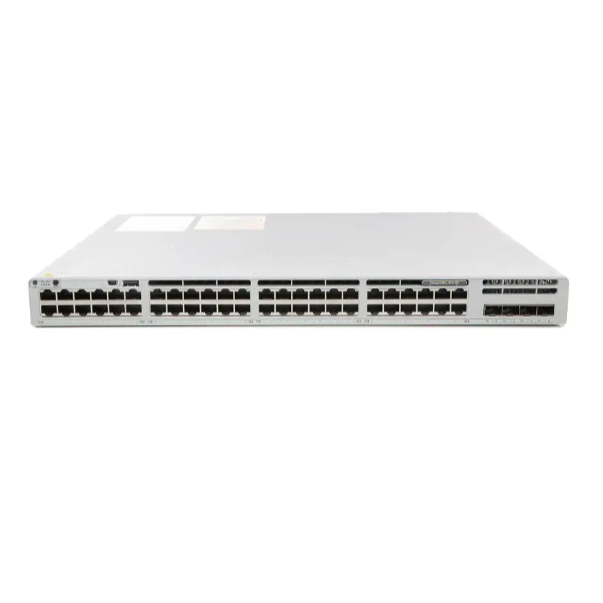

Figure 1 shows the front panel of C9300L-48PF-4G-E .
- 48 Full PoE+ Ports: Supports IEEE 802.3at PoE+ (up to 30W per port) with a robust 740W total power budget.
- Fixed Uplinks: Equipped with 4x 1G SFP fixed uplink ports for reliable high-speed connectivity.
- Scalable Stacking: Supports Cisco StackWise-320 technology, allowing you to stack up to 8 switches with 320 Gbps bandwidth.
- Superior Throughput: Delivers a switching capacity of 104 Gbps and a forwarding rate of 77.38 Mpps.
- Enhanced Security: Powered by Cisco IOS XE, supporting AES-128 MACsec encryption and advanced policy-based segmentation.
| Feature | Specification |
|---|---|
| Model | C9300L-48PF-4G-E |
| Total 10/100/1000 Ethernet Ports | 48 Ports Full PoE+ |
| Uplink Configuration | 4x 1G Fixed SFP |
| PoE Budget | 740W |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps |
| Stacking Bandwidth | 320 Gbps (StackWise-320) |
Q: What is the difference between Cisco C9300L-48PF-4G-E and C9300L-48P-4G-E?
A: The primary difference lies in the PoE Power Budget. The "PF" (Full PoE) model provides a 740W budget, whereas the "P" model typically provides a lower budget around 505W. If you are deploying high-density Wi-Fi 6 Access Points or PTZ IP cameras, the 48PF is the recommended choice to ensure sufficient power across all ports.
Q: Why choose the C9300L over the standard C9300 series?
A: The C9300L series features fixed uplinks, making it a more cost-effective solution for branches and mid-market enterprises that do not require modularity. The standard C9300 offers modular uplinks and higher stacking bandwidth (StackWise-480) for larger core campus requirements.
Q: Does this switch support Layer 3 routing?
A: Yes, the C9300L-48PF-4G-E is a fully managed Layer 3 switch. It supports advanced routing protocols such as OSPF, EIGRP, ISIS, RIP, and BGP, along with professional-grade multicast routing.
Q: What warranty and after-sales support do you provide?
A: We guarantee 100% authentic Cisco hardware. Each unit undergoes rigorous quality testing. We offer a 1-Year Warranty on all Cisco products, coupled with remote technical support to assist with configuration and deployment.
Q: What are the shipping options and delivery times?
A: We partner with leading global carriers including DHL, FedEx, and UPS. Orders are typically processed within 24-48 hours. International delivery usually takes 3 to 5 business days depending on the destination.
