Overview

The Cisco Catalyst C9300L-48PF-4X-E is an enterprise-class, stackable layer 3 switch engineered to anchor modern high-density digital workplaces. Featuring 48 ports of Full Power over Ethernet Plus (PoE+), a robust 890W default PoE budget, and 4 fixed 10G SFP+ uplinks, this switch provides the perfect blend of high-density power delivery, multigigabit performance, and network resiliency. Powered by Cisco’s Unified Access Data Plane (UADP 2.0) ASIC and running the Cisco IOS-XE Network Essentials software package, the C9300L-48PF-4X-E ensures seamless cloud-managed scaling, advanced security via MACsec, and zero-touch deployment for midmarket and enterprise branch offices.

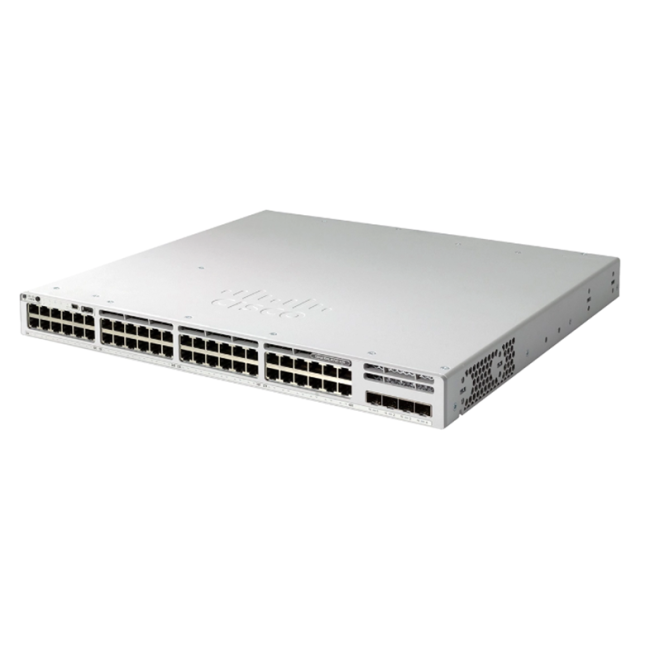

Figure 1 shows the front panel of C9300L-48PF-4X-E.

What is the Cisco C9300L-48PF-4X-E Switch?

The Cisco C9300L-48PF-4X-E belongs to the industry-leading Catalyst 9300 Series, specifically tailored as a fixed-uplink option (denoted by the "L") within the premium 9300 line. It offers 48 standard 10/100/1000 Mbps RJ45 ports that support IEEE 802.3at PoE+ (up to 30W per port), meaning you can power a dense cluster of IoT devices without needing midspan power injectors. The "4X" indicates 4 integrated 10 Gigabit SFP+ ports on the front panel, eliminating the need for modular uplink cards while providing high-speed optical trunk links to your core network infrastructure.

Why Choose C9300L-48PF-4X-E for Your Enterprise Infrastructure?

1. Exceptional Power Budget for High-Density IoT

With an aggregate PoE budget of 890W (extendable via dual hot-swappable 1100W AC power supplies), this switch delivers unrestricted power across all 48 ports simultaneously. It easily sustains modern power-hungry devices including Wi-Fi 6/6E Access Points, PTZ (Pan-Tilt-Zoom) IP surveillance cameras, video endpoints, and smart building LED lighting controllers.

2. High Availability with StackWise-320

The C9300L sub-series supports Cisco StackWise-320 technology. By stacking up to 8 switches together, you can manage them as a single logical entity with an impressive stacking bandwidth of 320 Gbps. This architecture guarantees stateful switchover (NSF/SSO) resilience, meaning if one switch in the stack fails, data flows continue uninterrupted.

3. Advanced Security and Automated Segmentation

Equipped with MACsec-128 link encryption, the C9300L-48PF-4X-E protects your localized data frames against wiretapping and active breaches. Combined with Cisco Trust Anchor technology, Secure Boot, and First Hop Security (FHS), it verifies the integrity of the hardware and software code to mitigate supply chain firmware risks and unauthorized access.

How to Deploy and Manage the Cisco C9300L-48PF-4X-E

Stacking and Optical Interconnect Setup

To optimize the fixed 4x10G SFP+ uplinks for maximum reach and high throughput, network engineers frequently couple the C9300L-48PF-4X-E with premium transceivers and accessories:

• For Fiber Trunking: Use Cisco-compatible 10G SFP+ SR (Short Range) multimode transceivers with OM3/OM4 MPO or LC fiber patch cords for distances up to 300 meters, or 10G SFP+ LR (Long Range) single-mode optics for campus backbones up to 10km.

• Stacking Connection: Install the optional StackWise-320 stacking kit on the rear panel using specialized stacking cables to bridge multiple Catalyst 9300L units into a unified resilient node.

Management Platforms

The Network Essentials license allows standard localized control via an intuitive WebGUI or advanced Command Line Interface (CLI) via NETCONF/RESTCONF. For enterprise automated provisioning, it links directly to Cisco DNA Center, turning complex policy distributions and Day-2 analytical troubleshooting into a simplified, single-pane-of-glass operation.

In-Depth Technical Specifications

Product Comparison & Selection Guide

To assist enterprise procurement managers in making an informed purchasing decision, the matrix below details how the C9300L-48PF-4X-E compares against neighboring Cisco variants:

FAQ

Q1: What is the primary difference between Cisco C9300 and C9300L models?

A: The standard Catalyst 9300 series features modular uplink slots, letting you switch between 1G, 10G, 25G, or 40G modules later, and supports StackWise-480. The C9300L features fixed uplinks (in this case, four built-in 10G SFP+ ports) which cannot be changed, and uses StackWise-320. The C9300L offers a lower total cost of ownership (TCO) while delivering identical Layer 3 software functionality.

Q2: Does the C9300L-48PF-4X-E support hot-swappable dual power supplies?

A: Yes. The switch comes standard with one high-efficiency AC power supply, but features dual rear power slots. You can add a secondary redundant power supply module (PWR-C1-1100WAC-P) to enable load-sharing, power redundancy, or to maximize the PoE power availability during full-load device deployment.

Q3: What transceivers are compatible with the 4x 10G fixed uplinks?

A: The uplink ports accept industry-standard SFP+ form factor transceivers. This includes 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, and 10G SFP+ Active Optical Cables (AOC) or Direct Attach Copper (DAC) twinax cables for short-range switch-to-switch stacking or distribution clustering.

Q4: What after-sales service and warranty coverages are provided with this purchase?

A: We provide a comprehensive 1-Year Hardware Warranty on all new retail-sealed Cisco switches. In the event of an unresolvable hardware failure, our technical group coordinates rapid replacement workflows. Furthermore, we offer standard remote onboarding support to assist with initial setup, VLAN configuring, and stacking configurations.

Q5: Can I upgrade the software license from Network Essentials to Network Advantage later?

A: Yes, the license on the Cisco Catalyst series can be upgraded electronically. While Network Essentials covers comprehensive Layer 2/3 routing, Trunking, and basic security, upgrading to Network Advantage unlocks advanced capabilities like Full Flexible NetFlow, BGP routing scale, and Cisco SD-Access macro-segmentation.

Conclusion

The Cisco C9300L-48PF-4X-E stands as a robust powerhouse for the modern enterprise edge. Combining heavy-duty PoE budgets, fixed 10G fiber uplinks, and enterprise-grade resiliency tools like StackWise-320, it is the ideal long-term investment for businesses scaling their network capabilities.
