Cisco Optical Transceiver Module GLC-SX-MM-RGD 1000BASE-SX 1.25g 850nm 550m
Cisco Module GLC-SX-MM-RGD 1000BASE-SX Gpon SFP ONU 850nm 550m / 1km
GLC-SX-MM-RGD Overview

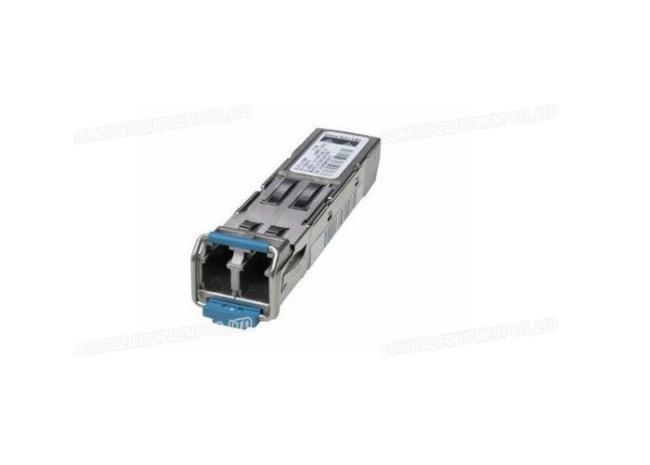

The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter (Figure 1) links your switches and routers to the network. The hot-swappable input/output device plugs into a Gigabit Ethernet port or slot. Optical and copper models can be used on a wide variety of Cisco products and intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
The GLC-SX-MM-RGD is a third-party compatible SFP for Cisco. This 1000BASE module will reach 550m / 1km and uses a wavelength of 850nm. All GLC-SX-MM-RGD are in-system tested in real Cisco routers and switches.
GLC-SX-MM-RGD Specification
| GLC-SX-MM-RGD Specification | |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 1800 ft |
| Compliant Standards | IEEE 802.3z, IEEE 802.3ah |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-SX - LC/PC multi-mode x 2 |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Miscellaneous | |
| Compliant Standards | Laser Class 1, IEC 60825-1 |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.2 in |
| Height | 0.4 in |
| Weight | 2.65 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 90 days |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Compatibility Information | |
| Designed For | Cisco 2010, 2010 Connected Grid, 2520 Connected Grid Switch, 3270 Rugged Integrated Services Router Bundle, 3270 Rugged Integrated Services Router Card, 3270 Rugged ISR Card ¦ Cisco Aironet 1522AG Lightweight Outdoor Mesh Access Point ¦ Cisco Catalyst 2960-24LC-S, 2960-24PC-L, 2960-24PC-S, 2960-24TC, 2960-24TC-L, 2960-24TC-S, 2960-48PST-L, 2960-48PST-S, 2960-48T, 2960-48TC, 2960-48TC-L, 2960-48TC-S, 2960-8TC, 2960-8TC-S, 2960G-24TC, 2960G-48TC, 2960G-8TC, 2960S-24PD-L, 2960S-24PS-L, 2960S-24TD-L, 2960S-24TS-L, 2960S-24TS-S, 2960S-48FPD-L, 2960S-48FPS-L, 2960S-48LPD-L, 2960S-48LPS-L, 2960S-48TD-L, 2960S-48TS-L, 2960S-48TS-S ¦ Cisco Industrial Ethernet 3000 Series, 3010 Series ¦ Cisco MWR 2941-DC, 2941-DC-A |
Cisco SFP modules typically consume up to 1W per SFP port, with the exception of the Compact SFP (GLC-2BX-D) consuming up to 1.5W.
