S5700-52C-EI Huawei Network Switches 48 Ethernet 10 / 100 / 1000 Ports Gigabit Network Bundle
Huawei Switch S5700-52C-EI 48 Ethernet 10/100/1000 Ports Gigabit Network Bundle
1 . Description:

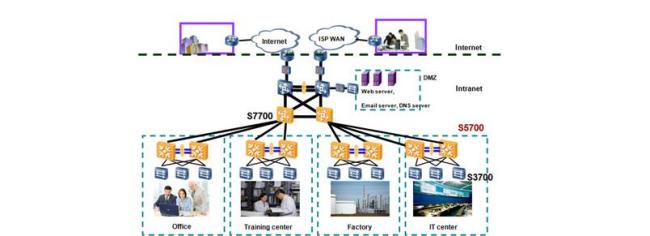

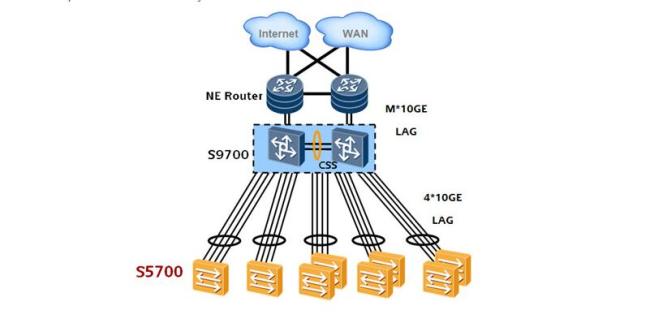

The S5700-52C-EI-AC gigabit enterprise switch is next-generation energy-saving switch developed by Huawei to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. With 48 GE ports and 2 extended slots, it provides a large switching capacity and high-density GE ports to implement 10 Gbit/s upstream transmissions, widely used in various application scenarios like enterprise park access, convergence, gigabit access of data center application scenarios. It also has the card slot to offer diversified choices to customers, satisfying different demands of them. The S5700-52C-EI-AC is easy to install and maintain, reducing workloads for network planning, construction, and maintenance, then it uses advanced reliability, security, and energy conservation technology to help enterprise customers build a next-generation IT network.
| Product Code | S5700-52C-EI-AC |
| Fixed Ports | 48 x 10/100/1,000 Base-T |
| Extended Slots | 2 extended slots |
| Memory (RAM) | 256 MB |
| Flash | 32MB |
| MAC Address Table Size Forwarding Performance | 32K MAC |
| Subcards Supported |
4 x 1,000 Base-X SFP subcard 2 x 10 GE SFP+ subcard 4 x 10 GE SFP+ subcard |
| Forwarding Performance | 132 Mpps |
| Switching Capacity | 256 Gbit/s |
| Power Supply | Double hot-swappable AC/DC power supplies |
| Voltage Required |
AC: Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 50/60 Hz DC: Rated voltage range: –48V to –60V, DC Maximum voltage range: –36V to –72V, DC |
| Power Consumption Operational | < 88W |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight | 7.3 kg |
