AIR-CT2504-50-K9, Cisco 2500 Wireless Controller, 50 AP licenses/4xGE ports/RF management
Price:
Negotiable
MOQ:
1 UNIT
Delivery Time:
1-2 DAYS
Brand:
CISCO
Product Description
Cisco AIR-CT2504-50-K9 Overview
The Cisco AIR-CT2504-50-K9 is an enterprise-class wireless controller designed to centrally manage indoor Wi‑Fi networks across campuses and branch offices in Asia, Europe, Africa, and North America. This Cisco wireless controller supports up to 50 access point licenses with scalability to 75, making it ideal for distributors and SMB integrators building secure WLAN solutions. With 4 x 10/100/1000 Ethernet ports, extensive IEEE 802.11a/b/g/n/ac support, and rich WPA2 and IPsec security standards, it delivers reliable RF management and simplified operations for end users.
.

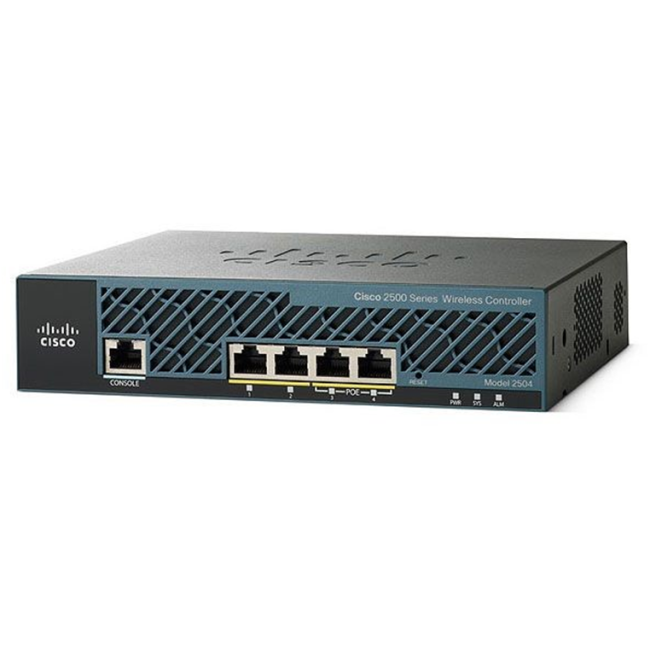

Figure 1 shows the front panel of AIR-CT2504-50-K9.
Product Features Comparison
| Model | AIR-CT2504-50-K9 | L-ES3-16-IPS=, Cisco License, IP Services Upgrade/16 Port FE/ES3 Switch | L-ASA-VPNP-5515=, Cisco ASA VPN License, Premium Shared VPN/ASA 5515-X/License | L-NCS-1.0-100-ADD, Cisco License, Prime NCS Add-on/100 Devices/Software |
| Brand | Cisco | Cisco | Cisco | Cisco |
| Licensed Feature | n/a | IP Services License Upgrade | Premium Shared VPN Participant License | Add-on License |
| License Term | n/a | n/a | Perpetual | Perpetual |
| Supported Devices | 50 licenses included (75 licenses max) | Cisco EtherSwitch | ASA 5515-X | Cisco Prime NCS |
| Activation Method | n/a | Online Licensing Update | n/a | License Key |
| User Limit | n/a | 16 | Up to 2500 | 100 |
Optional Add-ons
| Model Number | Description |
| L-LIC-CT2504-1A | Cisco 1 AP license add-on for AIR-CT2504 wireless controller |
| L-LIC-CT2504-5A | Cisco 5 AP licenses bundle for scaling AIR-CT2504 deployments |
| L-LIC-CT2504-25A | Cisco 25 AP licenses pack for AIR-CT2504 high-density WLAN expansion |
Cisco AIR-CT2504-50-K9 Specification
Model
AIR-CT2504-50-K9
Brand
Cisco
Device Type
Wireless controller
Access Points
50 licenses included (75 licenses max)
Ports
4 × 10/100/1000 ports
Console Ports
10/100/1000 RJ-45
Wireless Standards
IEEE 802.11a/b/g/d/e/h/k/n/r/u/w/ac
Access Point Licenses
1 AP license: L-LIC-CT2504-1A; 5 AP licenses: L-LIC-CT2504-5A; 25 AP licenses: L-LIC-CT2504-25A
Security Standards (1)
Wi-Fi Protected Access (WPA); IEEE 802.11i (WPA2, RSN); RFC 1321 MD5 Message-Digest Algorithm; RFC 1851 The ESP Triple DES Transform; RFC 2104 HMAC: Keyed Hashing for Message Authentication; RFC 2246 TLS Protocol Version 1.0; RFC 2401 Security Architecture for the Internet Protocol; RFC 2403 HMAC-MD5-96 within ESP and AH; RFC 2404 HMAC-SHA-1-96 within ESP and AH; RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV
Security Standards (2)
RFC 2406 IP Encapsulating Security Payload (ESP); RFC 2407 Interpretation for ISAKMP; RFC 2408 ISAKMP; RFC 2409 IKE; RFC 2451 ESP CBC-Mode Cipher Algorithms; RFC 3280 Internet X.509 PKI Certificate and CRL Profile; RFC 3602 The AES-CBC Cipher Algorithm and Its Use with IPsec; RFC 3686 Using AES Counter Mode with IPsec ESP; RFC 4347 Datagram Transport Layer Security; RFC 4346 TLS Protocol Version 1.1
Encryption (1)
WEP and TKIP-MIC: RC4 40, 104 and 128 bits (static and shared keys); Advanced Encryption Standard (AES): CBC, CCM, CCMP
Encryption (2)
DES: DES-CBC, 3DES; SSL and TLS: RC4 128-bit and RSA 1024- and 2048-bit; DTLS: AES-CBC
AAA (1)
IEEE 802.1X; RFC 2548 Microsoft Vendor-Specific RADIUS Attributes; RFC 2716 PPP EAP-TLS; RFC 2865 RADIUS Authentication; RFC 2866 RADIUS Accounting; RFC 2867 RADIUS Tunnel Accounting
AAA (2)
RFC 3576 Dynamic Authorization Extensions to RADIUS; RFC 3579 RADIUS Support for EAP; RFC 3580 IEEE 802.1X RADIUS Guidelines; RFC 3748 Extensible Authentication Protocol; Web-based authentication; TACACS support for management users
Weight
kg
