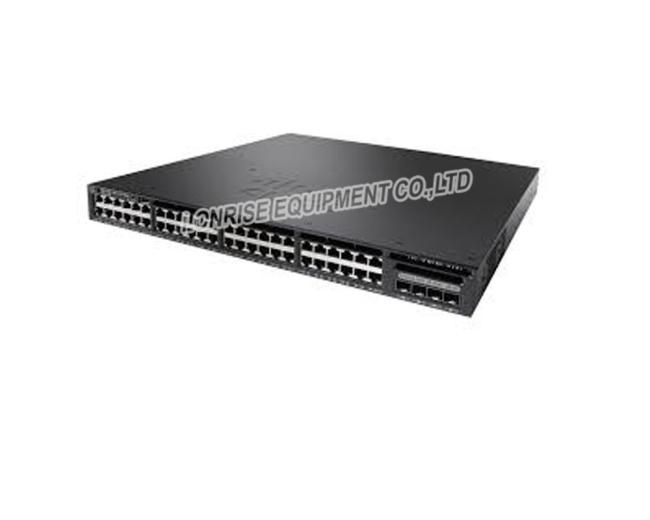

Cisco Fiber Optic Ehternet Switch WS-C3650-48TS-L 48 Ports 4 x1G Uplink LAN Base



Overview

The Cisco Catalyst 3650 series is the enterprise-class standalone and stackable access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise-160, and takes advantage of the Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 series switch offers modular and field-replaceable redundant fans and power supplies. It can help you increase wireless productivity and reduce your TCO.

Specifications

Cisco WS-C3650-48TS-L Catalyst 3650 48 Port Data 4 x1G Uplink LAN Base

Device Type	Switch - 48 ports - Managed - stackable
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Performance	Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps
Features	Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support,

WS-C3650-48TS-L Extended Specification

General
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Device Type	Switch - 48 ports - Managed - stackable
Enclosure Type	Desktop, rack-mountable 1U
Flash Memory	2 GB
Mac Address Table Size	32000 entries
Performance	Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps
Ram	4 GB
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Status Indicators	Port transmission speed, port duplex mode, system, active, status
Dimensions & Weight
Depth	44.8 cm
Height	4.4 cm
Weight	7.21 kg
Width	44.5 cm
Environmental Parameters
Humidity Range Operating	5 - 96% (non-condensing)
Max Operating Temperature	45 °C
Max Storage Temperature	70 °C
Min Operating Temperature	-5 °C
Min Storage Temperature	-40 °C
Expansion / Connectivity
Expansion Slots	1 (total) / 1 (free) x Stacking Module
Interfaces	48 x 1000Base-T - RJ-45 ¦ 1 x USB - Type A ¦ 1 x serial (console) - RJ-45 - management ¦ 1 x management (Gigabit LAN) - RJ-45 - management ¦ 1 x management (mini-USB) - Type B - management ¦ 4 x 1000Base-X - SFP - uplink
Manufacturer Warranty
Service Support	Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days
Miscellaneous
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Mtbf	527,580 hours
Rack Mounting Kit	Included
