108 Mpps Huawei Network Switch S5720S 28X LI AC 24 Ethernet 10 / 100 / 1000 Ports 10 Gig SFP+

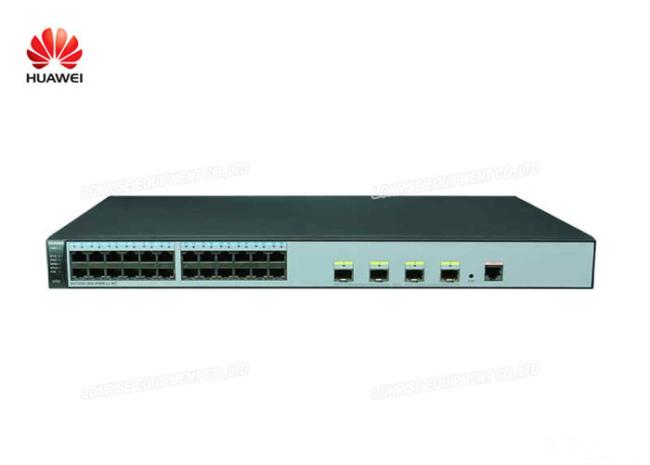

Huawei Network Switch S5720S-28X-LI-AC 24 Ethernet 10/100/1000 Ports 10 Gig SFP+
S5720S-28X-LI-AC Overview
The S5720S-LI is an energy-saving gigabit Ethernet switch that provides flexible GE access ports and 10 GE uplink ports.
Building on high-performance hardware and the Huawei Versatile Routing Platform (VRP), the S5720S-LI supports intelligent Stack (iStack), flexible Ethernet networking, and diversified security control. It provides customers with a green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solution.
S5720S-28X-LI-AC Specification
| S5720S-28X-LI-AC Specification | |
| Memory (RAM) | 512 MB |
| Flash | 240 MB |
| Mean time between failures (MTBF) | 45 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | ±6 kV in differential mode, ±6 kV in common mode |
| Dimensions (W x D x H) | 442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.) |
| Weight (including packaging materials) | 3 kg (6.62 lb) |
| Stack ports | Twenty-four 10/100/1000BASE-T ports and four 10G SFP+ ports |
| RTC | Not supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, full speed of fans) | 29.5 W |
| Typical power consumption (30% of traffic load) | 21.4 W |
| Tested according to ATIS standard | |
| EEE enabled | |
| No PoE power consumption | |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | less than 47 dBA |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
The S5720S-LI is a next-generation energy-saving gigabit Ethernet switch that provides flexible GE access ports and 10GE uplink ports. Building on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), the S5720S-LI supports intelligent stack (iStack), flexible Ethernet networking, and diversified security control. It provides customers with a green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solution. In addition, Huawei customizes specialized models to meet customer requirements to suit special scenarios.
