Huawei Industrial Network Router AR3200 Series AR0M0036SA00 350W AC Power With SRU40
Huawei Integrated Enterprise Router AR0M0036SA00 350W AC Power 4 SIC 2 WSIC
AR0M0036SA00 Overview

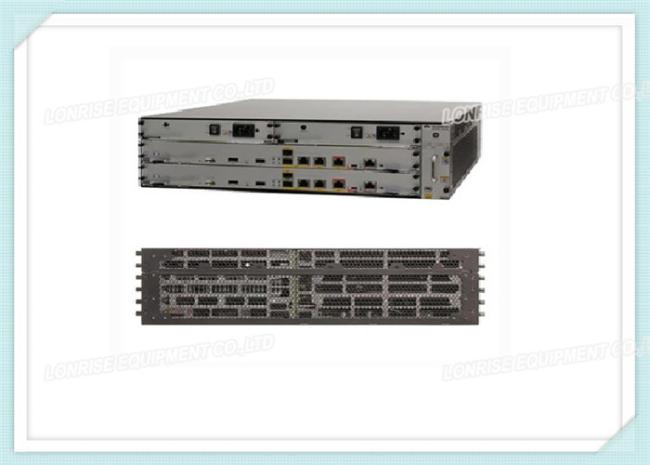

Huawei AR0M0036SA00 is one of the Huawei AR3200 Series routers, which support SRU. These modular chassis allows customers to choose from two main control boards and nine interface cards that provide a wide array of service and performance options. The main control boards are called Service and Router Units (SRUs). AR0M0036SA00 is a Huawei AR3260 chassis with SRU40 offers up to 600Mbps system capacity, 5.5Gbps Firewall performance and 160Gbps switching capacity.
AR0M0036SA00 Specification
AR0M0036SA00 Specifications |
|
| Type | AR3260, Service and Router Unit 40, 4 SIC, 2 WSIC, 4 XSIC, 350W AC Power |
| Software Version | V200R001C00 and later |
| Dimensions (W x D x H) | 442.0 mm x 470.0 mm x 130.5 mm |
| Memory |
Configured with SRU40/SRU60/SRU80/SRU100: 2 GB Configured with SRU200: 4 GB |
| Flash | 16 MB |
| Hard disk | None |
| Service and Router Unit (SRU) | Supported |
| Network data encryption (SM1/2/3/4) card | Supported |
| Management interface | Supported |
| Console interface (RJ45) | Supported |
| Console interface (Mini USB) | Supported |
| USB 2.0 interface (host) | Supported |
| USB 2.0 interface (OTG) | None |
| Micro SD card (default) | Supported (2 GB) |
| Antenna interfaces | None |
| Service interfaces (standard configuration) |
WAN interfaces: Configured with SRU40/SRU60/SRU80/SRU100: 1 GE electrical interface and 2 GE combo interfaces Configured with SRU200: 2 10 GE optical interfaces and 4 GE combo interfaces LAN interfaces: none |
| Interface number | LAN interfaces: none |
| Extended slots | 4 SIC slots, 2 WSIC slots, and 4 XSIC slots |
| Power module type | Pluggable power module |
| Rated voltage range |
100 V AC/240 V AC, 50 Hz/60 Hz -48 V DC/-60 V DC |
| Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC |
| RPS150 | Not supported |
| PoE | Not supported |
| Maximum PoE power for PDs | None |
| PoE+ interfaces | None |
| Weight | 11 kg (24.2 lb) |
| Mounting brackets | Standard configuration |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating altitude | 0-4000 m (0-13123 ft.) |
| Fan type | Pluggable fan module |
| Heat dissipation mode | Forcible air cooling |
| Installation mode | Rack mounting |
FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
