ES5D21G16T00 Huawei 16 Ethernet 10/100/1000 Ports Interface Card

Price Negotiable

Price: Negotiable

MOQ: 1UNIT

Delivery Time: 2-3days

Brand: Huawei

Product Description

ES5D21G16T00 Huawei 16 Ethernet 10/100/1000 ports Interface Card used in S5710HI series

ES5D21G16T00 Overview

The ES5D21G16T00 provides sixteen GE electrical ports for data access and line-rate switching.

The ES5D21G16T00 can be installed in the front card slot of the S5710-108C-PWR-HI.

ES5D21G16T00 Specification

Function	Description
Basic function	Provides sixteen GE electrical ports for data access and line-rate switching.
Hot swapping	Supported

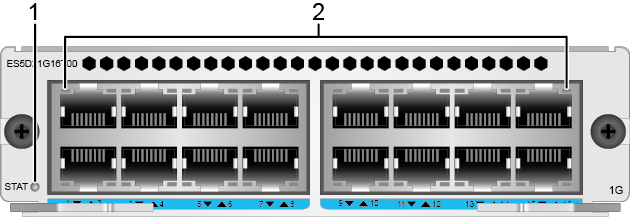

Number	Indicator	Color	Description
1	STAT	Off	The system software is not running.
		Green	Steady on: The system is starting. Blinking: The system is running properly.
		Red	A fault that affects services has occurred. The fault cannot be rectified automatically and requires manual intervention.
2	One single-color indicator for each port	Green	Steady on: A link is established on the port. Blinking: The port is transmitting or receiving data.
2	One single-color indicator for each port	Off	No link is established on the port.

Attribute	Description
Connector type	RJ45
Electrical port attributes	MDI/MDIX
Standards compliance	IEEE802.3, IEEE802.3u, IEEE802.3ab

Physical specifications	Dimensions (H x W x D): 39.6 mm x 145.0 mm x 233 mm (1.6 in. x 5.7 in. x 9.2 in.) Weight: 0.7 kg (1.54 lb) Maximum power consumption: 9.5 W
Environment specifications	Operating temperature: 0°C to 45°C (32°F to 113°F) Relative humidity: 5% RH to 95% RH Storage temperature: -40°C to +70°C (-40°F to +158°F)
